(152) - FRONT HYDRAULIC STEERING

Запчасти Case IH 2470 (152) - FRONT HYDRAULIC STEERING (05) - STEERING

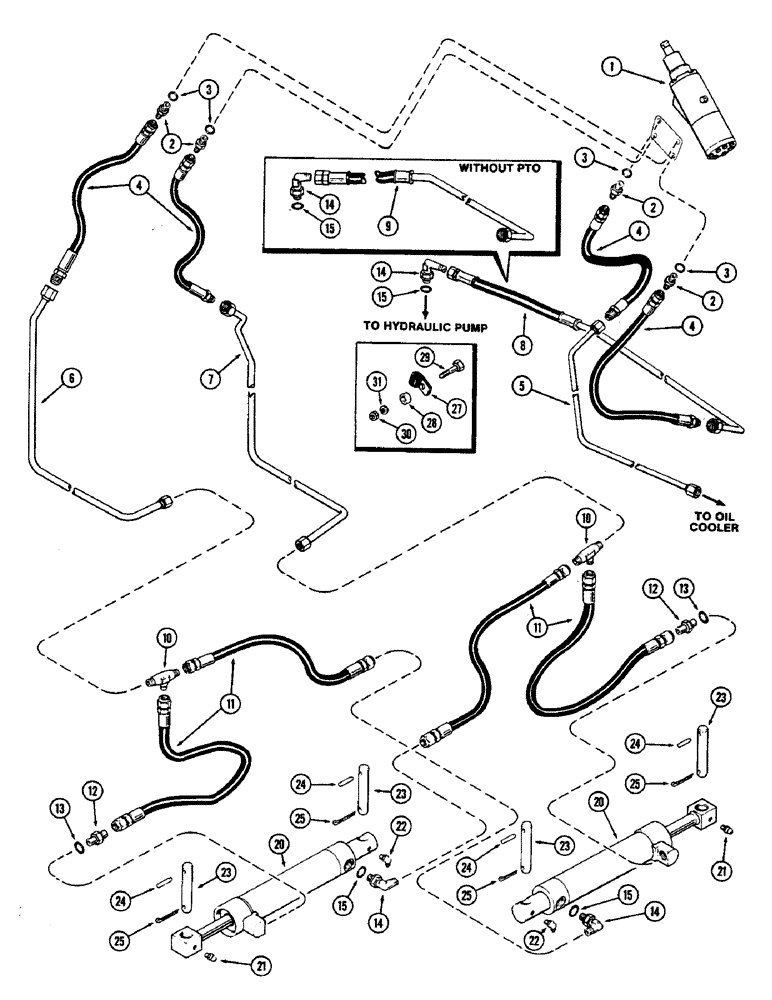

Схема запчастей Case IH 2470 - (152) - FRONT HYDRAULIC STEERING (05) - STEERING
28
2
11
25
25
25
10
20
2
14
20
27
30
2
5
29
7
3
1
6
23
4
15
14
10
31
24
15
13
23
11
3
3
8
21
22
14
21
24
12
13
4
15
15
23
22
25
14
4
24
12
23
9
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - front steering (See figure 160)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSEMBLY - straight, Includes: Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.91 x 9.52 x 1.98 mm)

1шт.

4

L12183

HOSE,0.38" ID x 17.50", SAE 100R1

Steering Valve (Replaces A138210) 0.38" ID x 17.50", SAE 100R1

4шт.

5

A138365

TUBE

- oil cooler inlet (Replaces A77038)

1шт.

6

A138364

TUBE

- steering cylinder, RH (Replaces A77044)

1шт.

7

A138366

TUBE

- steering cylinder, LH (Replaces A77045)

1шт.

8

A138367

HOSE

- pump to front steering valve, used with PTO (Replaces A77030)

1шт.

9

A138374

HOSE

- pump to front steering valve, used without PTO (Replaces A77029)

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

- tube union, 1/2" tube OD

2шт.

11

A75624

HOSE

- steering cylinder

4шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 13

2шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 15

3шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (see figure 168 and 170)

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

22

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 90 degree

2шт.

23

A160382

PIN,25.4mm OD x 132.08mm L

- steering cylinder (Replaces A75640)

4шт.

24

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

Pin, Grooved, 1/4" x 1 1/2", Type E

4шт.

25

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

27

49838

CLAMP

- tube

6шт.

28

A76093

BUSHING

SPACER - tube clamp

2шт.

29

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1" NC hex.

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.38 MM)

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.38 MM)

1шт.
