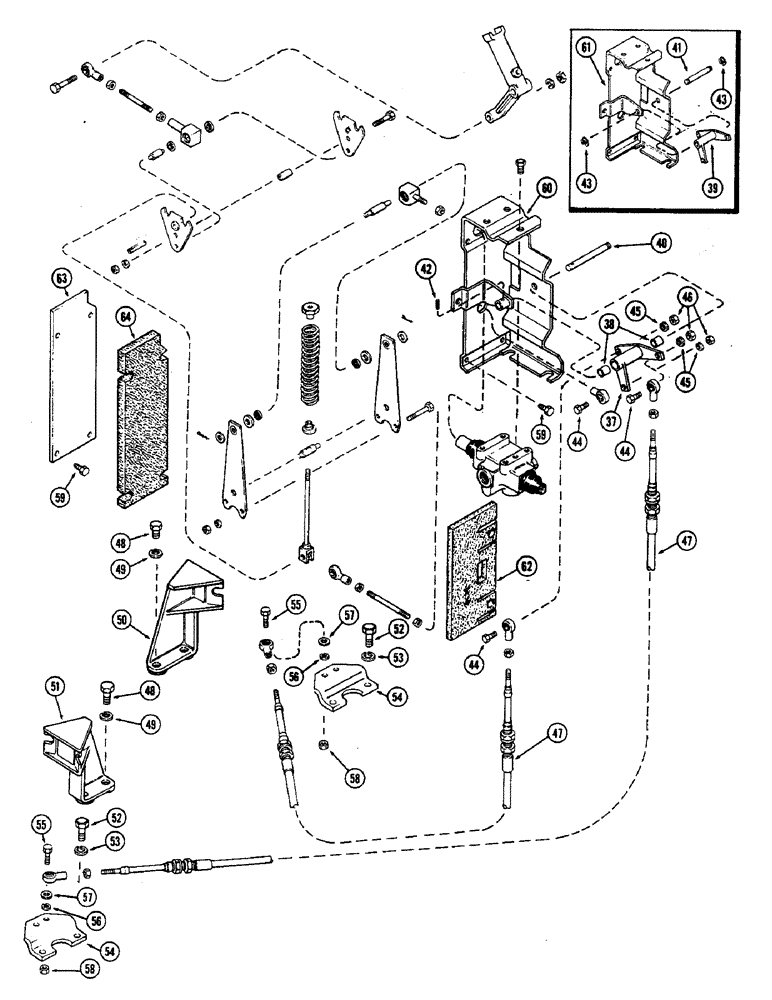

Запчасти Case IH 2470 (150) - REAR STEERING CONTROL LINKAGE, P.I.N. 8826940 AND AFTER, CONTD (05) - STEERING

37

A145425

CRANK

BELLCRANK - steering, Includes: Ref. 38 8828110 to

1шт.

38

A141259

BUSHING

- bellcrank, 1/2 x 5/8 x 3/4" (12.7 x 15.88 x 19.05 MM)

2шт.

39

A76729

CRANK

BELLCRANK - steering (Order A145425), Serial Range: -8828110

1шт.

40

A145422

SHAFT

- steering bellcrank, Start Serial: 8828110

1шт.

41

A76732

SHAFT

- steering bellcrank (Order A145422 shaft, 138-92 pin and 3-195-533 washer), Serial Range: -8828110

1шт.

42

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (4.76 x 19.05 mm) 3/16" x 3/4", Slotted, Start Serial: 8828110

1шт.

43

D95095

RING

KLIP RING - steering bellcrank shaft, Serial Range: -8828110

2шт.

44

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

3шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

46

9635082

NUT,5/16" - 18, Gr 5

3шт.

47

A145338

CABLE

- rear axle steering, 126" length (3 200.4 MM) (Replaces A76689)

2шт.

48

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

49

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

50

A76687

BRACKET

BULKHEAD - LH axle steering

1шт.

51

A76686

SUPPORT

BULKHEAD - RH axle steering

1шт.

52

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

53

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

54

A76684

PLATE - rear axle steering

2шт.

55

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

56

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

57

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

58

9635082

NUT,5/16" - 18, Gr 5

2шт.

59

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" NC hex.

9шт.

60

A145426

PARTITION

BULKHEAD - dash steering, Start Serial: 8828110

1шт.

61

A77200

BULKHEAD

- dash steering (Order A145426 bulkhead, A145422 shaft and 138-92 pin), Serial Range: -8828110

1шт.

62

A77203

PAD - seal, steering

1шт.

63

A77204

PLATE - cover, firewall steering hole (Without rear steering and with or without PTO)

1шт.

64

A77205

PAD

- firewall steering hole cover plate

1шт.
