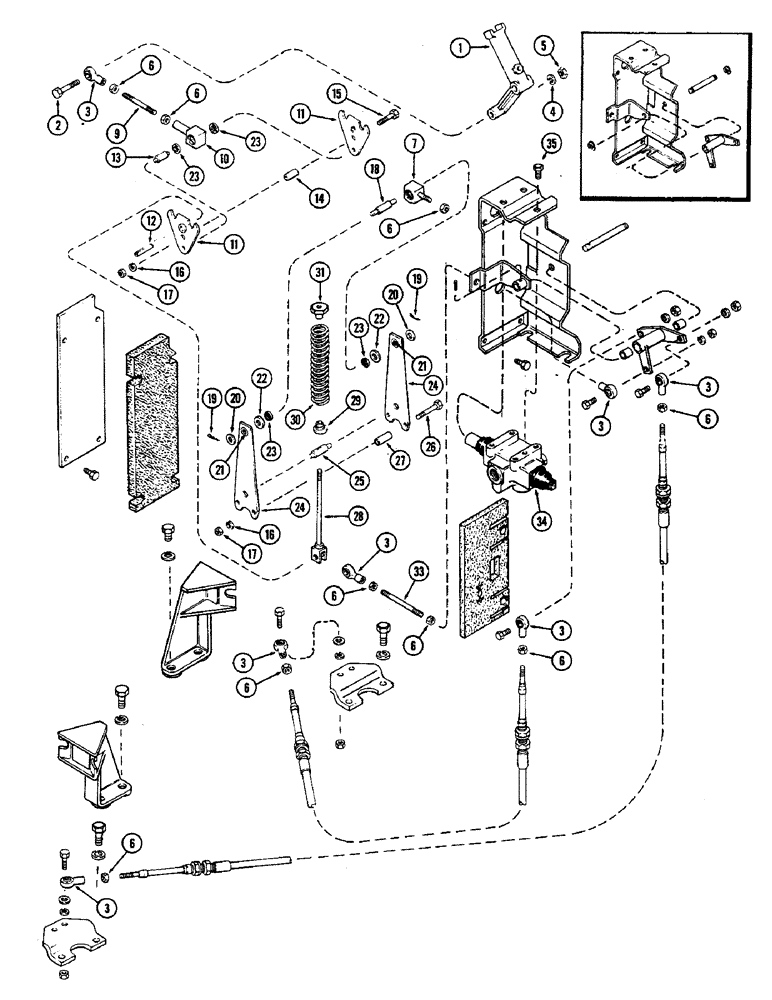

Запчасти Case IH 2470 (148) - REAR STEERING CONTROL LINKAGE, P.I.N. 8826940 AND AFTER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A147548
ARM
- control, rear steering
1шт.
2
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hex, 5/16"-18 x 2 1/4", G5
1шт.
3
A76685
BALL JOINT
- 5/16"
7шт.
4
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
5
9635082
NUT,5/16" - 18, Gr 5
1шт.
6
86637933
JAM NUT,5/16" - 24, Gr 5
8шт.
7
A145735
EYE
- upper steering
1шт.
A145722
EYE
ASSEMBLY - rear steering, Includes: Ref. 9 and 10
1шт.
9
A145721
ROD
- short, rear steering
1шт.
10
A145702
EYE
- rear steering, with bearing
1шт.
11
A145715
LEVER - steering valve, lower half
2шт.
12
138-159
LOCK PIN,5/16" x 1 3/4", Slotted
Pin, 5/16" x 1 3/4", Slotted
1шт.
13
A145690
PIN - pivot, lower steering
1шт.
14
A145703
SPACER - lower steering
1шт.
15
113-132
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
- 1/4 x 1-3/4" NC hex.
1шт.
16
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
3шт.
17
29-101
IGNITION SWITCH
NUT - 1/4" NC hex.
3шт.
18
A145734
PIN
- pivot, upper steering
1шт.
19
132-331
COTTER PIN,3/32" x 5/8"
PIN, SPLIT (COTTER), 3/32" x 5/8"
2шт.
20
A145740
WASHER
- upper steering eye
2шт.
21
A145738
INSERT
- upper steering eye
2шт.
22
A145737
SPACER
- upper steering eye
2шт.
23
A145710
SEAL
- felt
4шт.
24
A145727
LEVER - steering valve, upper half
2шт.
25
A76724
PIN
- steering valve lever
1шт.
26
113-15
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
- 1/4 x 2-1/4" NC hex.
2шт.
27
A76721
SPACER
- steering valve lever
2шт.
28
A145719
CLEVIS - steering lever
1шт.
29
A76727
SEAT
WASHER - valve lever spring
1шт.
30
A76726
SPRING
- steering valve lever
1шт.
31
1A45729
NUT - valve lever spring
1шт.
A143691
EYE ASSEMBLY - rear steering, Includes: Ref. 33
1шт.
33
NSS
NOT SOLD SEPARAT
ROD - long, rear steering
1шт.
34
A145273
VALVE
ASSEMBLY - rear steering (Used with or without PTO) (See figure 164)
1шт.
Выбрано товаров: 35
