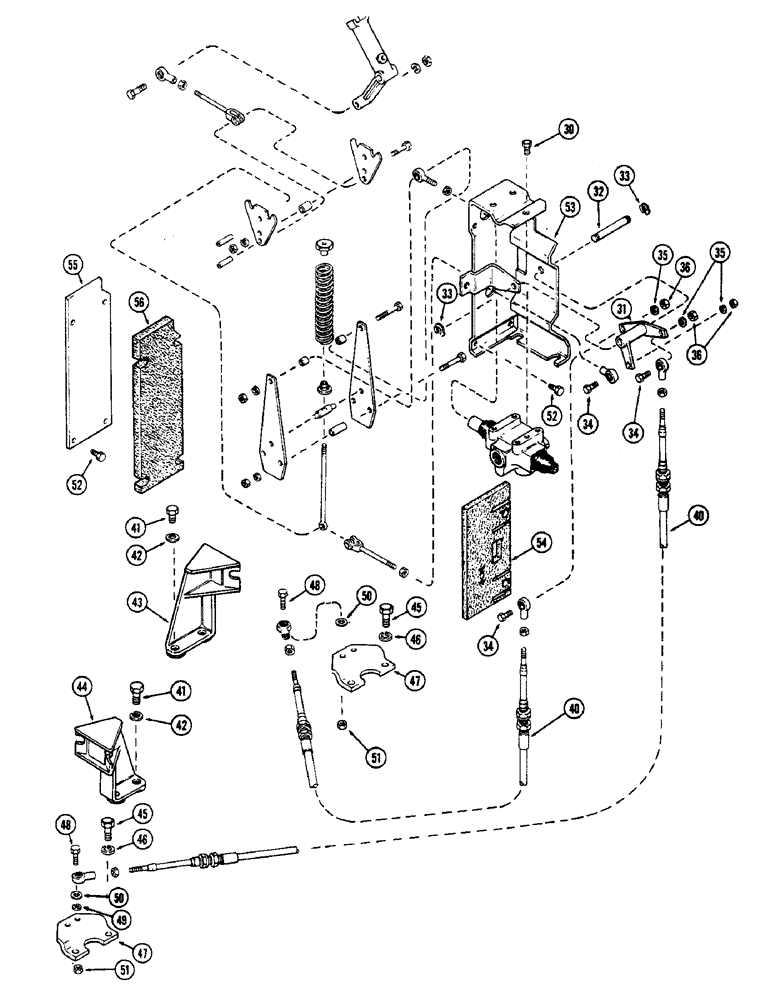

Запчасти Case IH 2470 (146) - REAR STEERING CONTROL LINKAGE, PRIOR TO P.I.N. 8826940, CONTD (05) - STEERING

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

31

A76729

CRANK

BELLCRANK - steering (Order A145425)

1шт.

32

A76732

SHAFT

- steering bellcrank (Order 1-A145422, 1-138-92 and 3-195-533)

1шт.

33

D95095

RING

KLIP RING - steering bellcrank shaft

2шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

36

9635082

NUT,5/16" - 18, Gr 5

3шт.

40

A145338

CABLE

- rear axle steering (Replaces A76689)

2шт.

40

A76689

CABLE

- rear axle steering 126" length (3 200.4 MM) (Order A145338)

2шт.

41

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

42

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

43

A76687

BRACKET

BULKHEAD - LH axle steering

1шт.

44

A76686

SUPPORT

BULKHEAD - RH axle steering

1шт.

45

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

47

A76684

PLATE - rear axle steering

2шт.

48

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

50

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

51

9635082

NUT,5/16" - 18, Gr 5

2шт.

52

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" NC hex.

9шт.

53

A77200

BULKHEAD

- dash steering (Order 1-A145422, 1-A145426 and 1-138-92)

1шт.

54

A77203

PAD - seal, steering

1шт.

55

A77204

PLATE - cover, firewall steering hole without rear steering and with or without PTO

1шт.

56

A77205

PAD

- firewall steering hole cover plate

1шт.
