Запчасти Case IH 2470 (144) - REAR STEERING CONTROL LINKAGE, PRIOR TO P.I.N. 8826940 (05) - STEERING

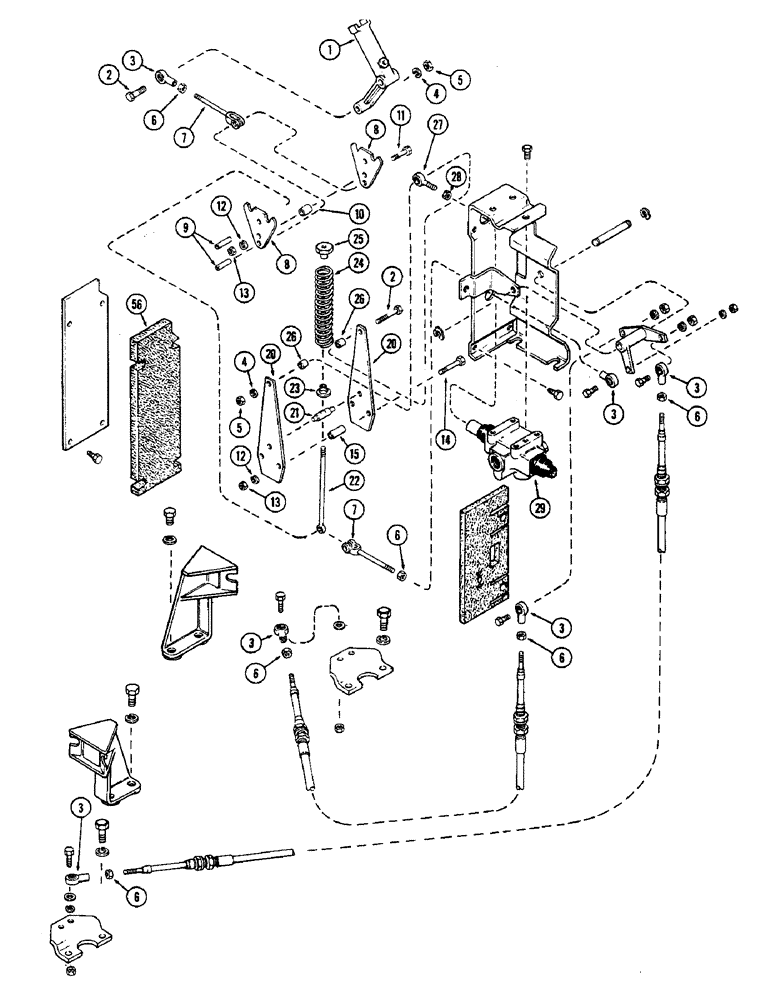

Схема запчастей Case IH 2470 - (144) - REAR STEERING CONTROL LINKAGE, PRIOR TO P.I.N. 8826940 (05) - STEERING
15
3
4
6
6
7
12
3
10
3
20
21
6
7
56
11
25
13
3
6
12
29
3
3
13
6
27
23
28
26
8
2
24
6
5
26
5
14
8
20
9
22
4
1
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ARM - control, rear steering

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

3

A76685

BALL JOINT

5/16"

6шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

86637933

JAM NUT,5/16" - 24, Gr 5

6шт.

7

A76723

CLEVIS

Rod end

2шт.

8

A76719

LEVER

Steering valve, upper half

2шт.

9

138-156

LOCK PIN,5/16" x 1 3/8", Slotted

2шт.

10

A31250

SPACER

Steering valve lever

1шт.

11

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

14

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

15

A76721

SPACER

Steering valve lever

2шт.

20

A76720

LEVER

Steering valve, lower half

2шт.

21

A76724

PIN

Steering valve lever

1шт.

22

A76722

BOLT

Eye, valve lever

1шт.

23

A76727

SEAT

WASHER - valve lever spring (Center)

1шт.

24

A76726

SPRING

Steering valve lever

1шт.

25

A76728

SPRING NUT

Valve lever spring (Center)

1шт.

26

A31251

SPACER

Steering valve lever at spool

2шт.

27

A76725

BALL JOINT

5/16"

1шт.

28

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

29

A145273

VALVE

ASSEMBLY - rear steering (Used with or without PTO) (See figure 164)

1шт.

Выбрано товаров: 25
