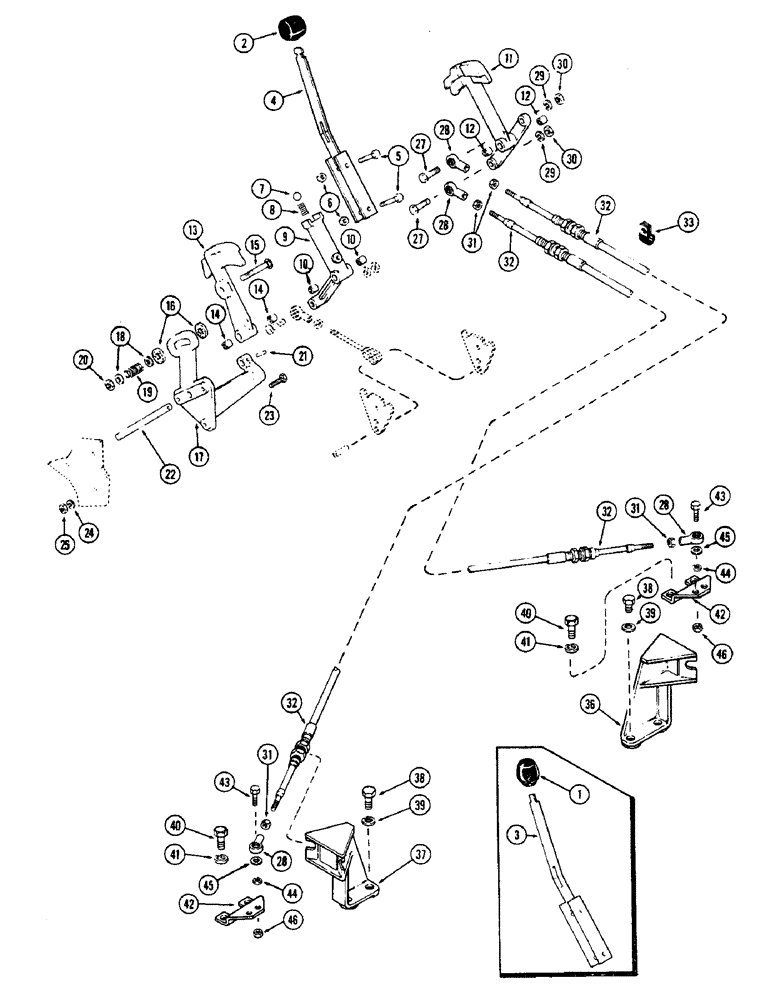

Запчасти Case IH 2470 (142) - REAR STEERING CONTROL LINKAGE (05) - STEERING

1

A65699

KNOB

- steering lever, plastic (Order A137806)

1шт.

2

A137806

KNOB

- steering lever, rubber (Replaces A65699)

1шт.

3

A75618

LEVER

- rear steering, with threaded top (Order ref. 2 and 4)

1шт.

4

A147552

ARM

LEVER - rear steering (Replaces A75618 and A137834)

1шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

6

131-94

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" NC hex.

2шт.

7

211-13

BALL,1/2" Dia

- detent (12.7 mm) 1/2" Dia

1шт.

8

A23082

SPRING

- detent, 1-3/16" free length (30.1265 MM)

1шт.

9

A147548

ARM

ASSEMBLY - control, with bushings, Includes: Ref. 10, Start Serial: 8829057

1шт.

9

A144414

ARM

ASSEMBLY - control, with bushings (Order A147548, A147552 and A147313), Includes: Ref. 10, Serial Range: -8829057

1шт.

10

A141259

BUSHING

- pivot

2шт.

11

A144416

ARM

ASSEMBLY - actuating, with bushings (Replaces A76717), Includes: Ref. 12

1шт.

12

A141259

BUSHING

- pivot

2шт.

13

A144415

ARM

ASSEMBLY - brake, with bushings (Replaces A75623), Includes: Ref. 14

1шт.

14

A141259

BUSHING

- pivot

2шт.

15

111-313

SCREW

BOLT - carriage, 3/8 x 2-3/4", grade 5

1шт.

16

A61069

DISC

- friction

2шт.

17

A147313

ARM

SUPPORT - rear steering lever (Replaces A75616)

1шт.

18

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.

19

A31252

SPRING

- brake, 1-1/32" free length (26.1938 MM)

1шт.

20

131-94

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" NC hex.

1шт.

21

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, (4.76 x 25.4 mm) 3/16" x 1", Slotted

1шт.

22

A75617

SHAFT

- rear steering lever

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

27

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

28

A76685

BALL JOINT

- 5/16"

4шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

31

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

32

A145339

CABLE

- front axle steering, 108" length (2743.2 MM) (Replaces A76688)

2шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP - LH cable

1шт.

36

A76687

BRACKET

BULKHEAD - LH axle steering

1шт.

37

A76686

SUPPORT

BULKHEAD - RH axle steering

1шт.

38

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

39

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

40

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

42

A76683

COVER PLATE

PLATE - front axle steering

2шт.

43

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

2шт.

46

9635082

NUT,5/16" - 18, Gr 5

2шт.
