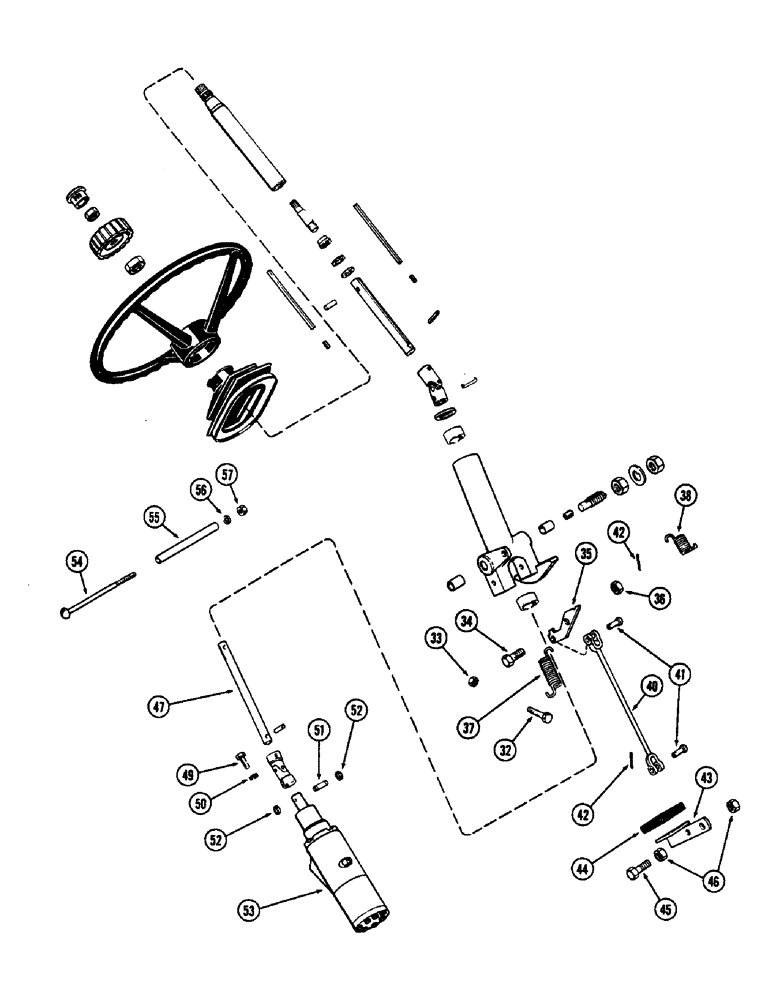

Запчасти Case IH 2470 (140) - ADJUSTABLE STEERING COLUMN, CONTD (05) - STEERING

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Steering column stop Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

33

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Latch to plate (Replaces 13-824) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

35

A64338

LATCH

- tilt steering

1шт.

36

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

2шт.

37

A63690

SPRING

- tilt return

1шт.

38

A64125

SPRING

- tilt latch

1шт.

40

A64126

ROD

- tilt latch

1шт.

41

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

42

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

43

A64127

PEDAL

- tilt steering

1шт.

44

A75351

SKID/SHOE

PAD - tilt pedal

1шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

46

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

2шт.

47

A76208

SHAFT

- steering valve to steering shaft

1шт.

49

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd. (Replaces 13-512)

4шт.

50

92-5

LOCK WASHER,5/16"

4шт.

51

A64000

PIN,9.42mm OD x 38.1mm L

- steering valve shaft

1шт.

52

A27795

RING

E-RING - steering valve pin

2шт.

53

REF

INSTRUCTION

PUMP ASSEMBLY - front steering control (See figure 160)

1шт.

54

115-107

BOLT,Hex, 5/16" - 18 x 7", Gr 5

- 5/16 x 7" NC round head

2шт.

55

A76203

BUSHING

SPACER - steering column

2шт.

56

92-5

LOCK WASHER,5/16"

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

(Replaces 25-105) 5/16"-18, G5

2шт.
