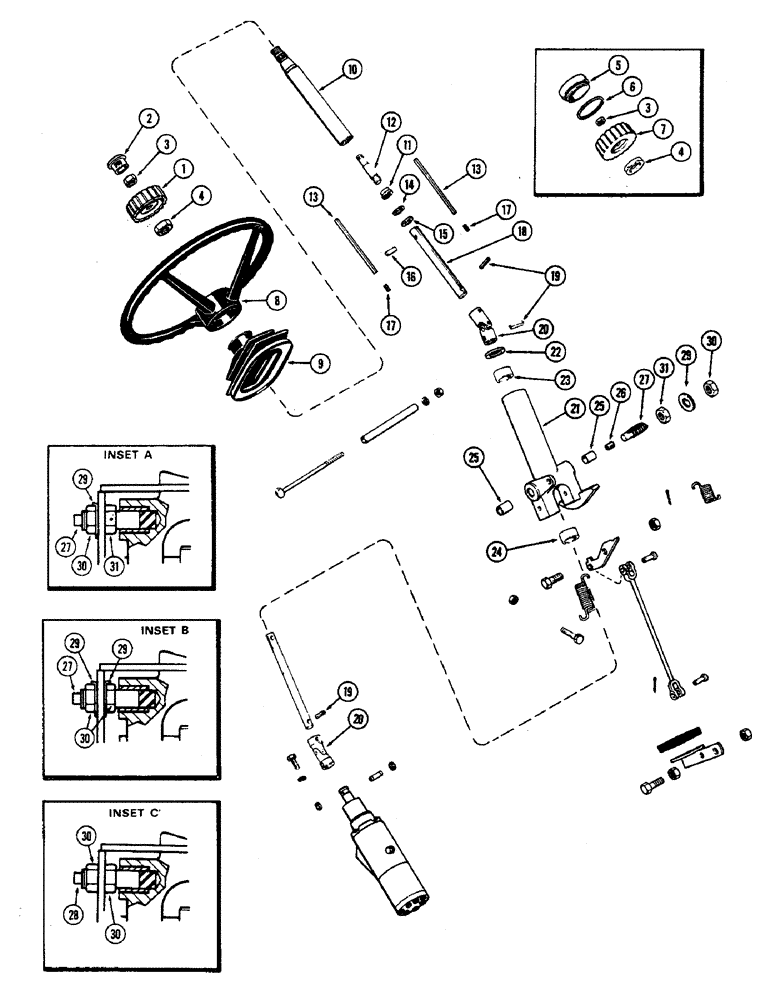

Запчасти Case IH 2470 (138) - ADJUSTABLE STEERING COLUMN (05) - STEERING

1

A141827

CAP

KNOB - steering wheel lock, Start Serial: 8796384

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- 1-5/16" Heyco, black nylon (Used with A141827)

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex., jam, cap to shaft

1шт.

4

A14567

JAM NUT

- 13/16" NF hex., Serial Range: wheel-shaft

1шт.

5

A62210

PLUG

MEDALLION - steering wheel lock knob (Order 1-A141827 and 1-353-413), Serial Range: -8796384

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - retaining, medallion (Order 1-A141827 and 1-353-413), Serial Range: -8796384

1шт.

7

A61293

KNOB

CAP - steering wheel (Order 1-A141827 and 1-353-413), Serial Range: -8796384

1шт.

8

A65544

STEERING WHEEL

1шт.

9

A61910

BOOT

- rubber

1шт.

10

A63681

SHAFT

- steering, outer

1шт.

11

A63684

LOCK NUT

- steering lock, 1/2" - 13 NC, special LH thread

1шт.

12

A63683

SHAFT

- steering, telescopic lock

1шт.

13

A63686

KEY

- steering lock

2шт.

14

A63688

FRICTION WASHER

- friction lock retainer

1шт.

15

A58116

RING

- snap, internal

1шт.

16

A63685

PIN

- stop

1шт.

17

A63687

LOCK

- friction

2шт.

18

A162020

SHAFT

- steering, inner (Replaces A63697)

1шт.

19

A139174

PIN

- roll, 3/8 x 1-3/16" (9.52 x 30.16 MM)

3шт.

20

A63689

JOINT

- universal

2шт.

21

A76204

SHAFT ASSY.

COLUMN ASSEMBLY - tilt steering, Includes: Ref. 22 - 25

1шт.

22

A61736

WIPER SEAL

- wiper

1шт.

23

A76206

BUSHING

- upper, 1-3/4 OD x 1-3/8 ID x 1" (44.45 x 34.925 x 25.40 MM)

1шт.

24

A76207

BUSHING

- lower, 1-3/4 OD x 1-1/4 ID x 1" (44.45 x 31.75 x 25.40 MM)

1шт.

25

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column stud

2шт.

26

A59842

BUMPER

SNUBBER - pivot, steering column

2шт.

27

A137354

STUD

- column pivot, with tongue groove (See insets A and B), Start Serial: 8769831

2шт.

28

A59163

STUD

- column pivot (Order A137354 and A137355) (See inset C), Serial Range: -8769831

2шт.

29

A137355

WASHER

- tongued, pivot stud (4 used tractor serial nos. 8769831 to 8793790) (See insets A and B)

1шт.

30

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex., jam (4 used prior to P.I.N. 8793790) (See insets B and C) (Replaces 25-1410)

1шт.

31

131-1113

JAM NUT,Jam, 5/8"-11

NUT - 5/8" hex. lock, Gripco (See inset A), Start Serial: 8793790

2шт.
