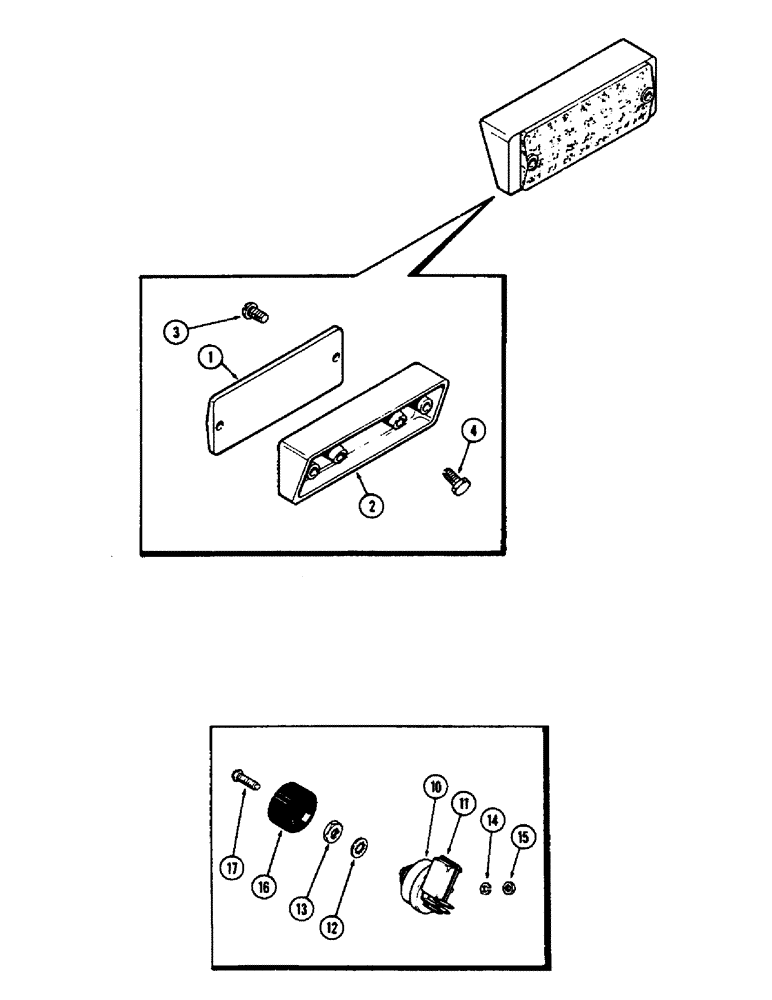

Запчасти Case IH 2470 (132) - RED REFLECTOR (04) - ELECTRICAL SYSTEMS

1

A62415

REFLECTOR

- red

2шт.

2

A62416

BRACKET

- reflector

2шт.

3

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" round head self tapping

4шт.

4

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - 1/4 x 5/8" hex. head self tapping

4шт.

10

A64499

SWITCH

ASSEMBLY - light, Includes: Ref. 11

1шт.

11

A45686

CIRCUIT-BREAKER

BREAKER - circuit (Replaces A43658), light switch

1шт.

12

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" internal, light switch

1шт.

13

A20467

NUT

- light switch lock

1шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

15

129-37

NUT,#10-32

Light switch #10-32

2шт.

16

A59695

KNOB

- light switch

1шт.

17

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- light switch knob, #8 x 5/8" NC pan head

1шт.
