Запчасти Case IH 2470 (130) - FLASHER LAMP (04) - ELECTRICAL SYSTEMS

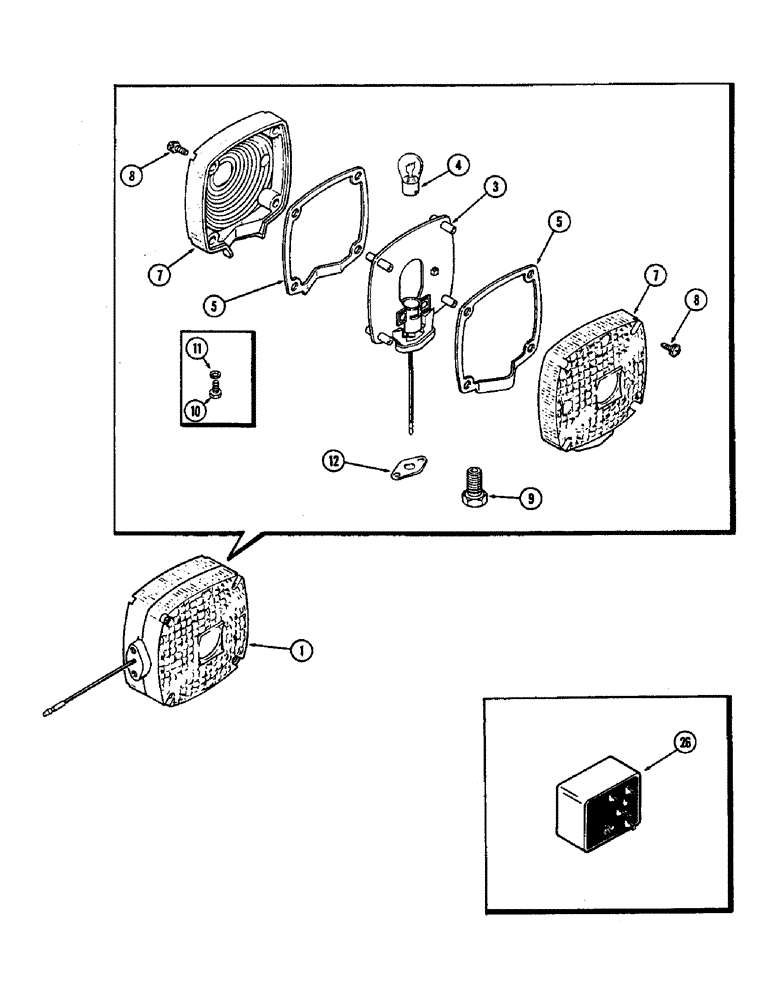

Схема запчастей Case IH 2470 - (130) - FLASHER LAMP (04) - ELECTRICAL SYSTEMS
11
1
4
7
8
5
3
8
7
26
5
12
9
10

Артикул

Название

Примечание

Количество

1

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher, Includes: Ref. 3 - 12

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - (Order A44201)

1шт.

4

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

5

A43731

GASKET

- sealing, lamp lens

2шт.

A44202

KIT

- lens replacement, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - (Order A44202)

2шт.

8

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-32 x 3/4" round head slotted Phillips head

8шт.

9

NSS

NOT SOLD SEPARAT

STUD - drilled (Not used this application)

1шт.

10

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

F63435

GASKET

- lamp base

1шт.

26

A77184

SWITCH

KIT - turn signal switch

1шт.

Выбрано товаров: 12
