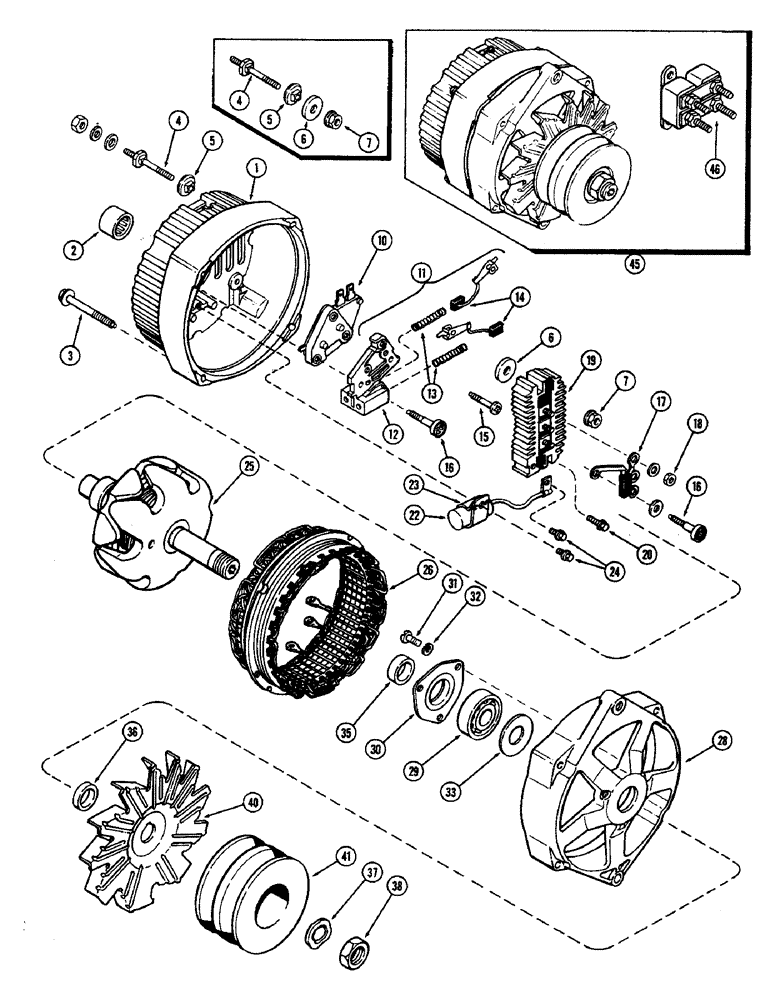

Запчасти Case IH 2470 (126) - A137862 ALTERNATOR, 55 AMPERE DELCO-REMY, P.I.N. 8825001 THROUGH 8826412 (04) - ELECTRICAL SYSTEMS

A137862

ALTERNATOR - 55 ampere (Delco #1102914) (J I Case installed) (See ref. 45) (Order A45202, A43384 fan and L59716 pulley), Includes: Ref. 1 - 38

1шт.

A45202

ALTERNATOR

ALTERNATOR ASSEMBLY - 61 amperes (Delco #1100585) (Without pulley and fan) (Service only), Includes: Ref. 1 - 38

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A45202

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47988

FUNNEL

FRAME FRAME ASSEMBLY - slip ring end (Replaces A45217)

1шт.

2

A45218

BEARING ASSY

BEARING - roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through, #10-24 x 1-3/4" hex washer head

4шт.

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER ASSEMBLY - (Includes brushes), Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A47989

SPRING

SPRING - brush (Replaces A43678)

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - generator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - #8-32 x 1-1/16", brush holder (Grounded)

2шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge, #8-32 x 1"

1шт.

22

A47734

CAPACITOR

CAPACITOR ASSEMBLY - (Includes bracket) (Replaces A45017)

1шт.

23

A45227

CLAMP

BRACKET - capacitor

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor, #8-32 x 3/8"

2шт.

25

A45391

ROTOR

ROTOR ASSEMBLY - (Includes slip rings)

1шт.

26

A45215

STATOR

STATOR ASSEMBLY

1шт.

28

A47839

SPARE PART

FRAME - drive end (Replaces A45229)

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate, #10-24 x 3/8" round head

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

4шт.

33

A45232

WASHER

WASHER - grease slinger bearing

1шт.

35

A44522

COLLAR

COLLAR - inside, rotor shaft (43/64 x 29/32 x 23/64")

1шт.

36

A72047

COLLAR

COLLAR - outer, rotor shaft (43/64 x 7/8 x 13/64")

1шт.

37

R16171

SPRING WASHER

WASHER - lock

1шт.

38

A25546

NUT

NUT - pulley and, Serial Range: fan-shaft

1шт.

40

A43384

FAN

FAN - alternator

1шт.

41

L59716

PULLEY

PULLEY - drive, alternator

1шт.

45

A147243

ALTERNATOR

KIT - (Order A161438, A47625 and L59716, see figure 105A), to convert 55 ampere alternator to 72, Includes: Ref. 46 and alternator

1шт.

REF

INSTRUCTION

ALTERNATOR - (See figure 128)

1шт.

46

A147004

BREAKER

BREAKER - circuit, 100 amperes, to convert 55 ampere, Serial Range: alternator-72

1шт.
