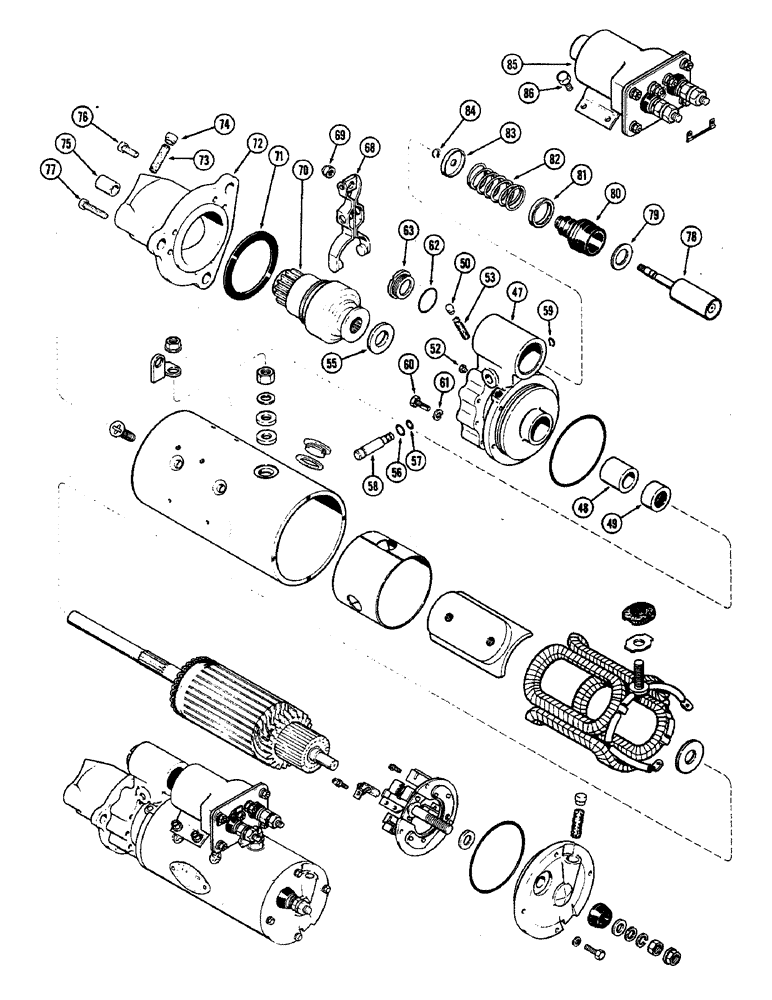

Запчасти Case IH 2470 (108) - STARTER ASSEMBLY, CONTD (04) - ELECTRICAL SYSTEMS

A162578

ENGINE

STARTER ASSEMBLY - , Includes: Ref. 47 - 86

1шт.

47

A47935

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 48 - 55

1шт.

48

A47261

BUSHING

- shift lever housing (Replaces A47842)

1шт.

49

R21582

OIL SEAL

- oil

1шт.

50

A47889

PLUG

- oil reservoir

1шт.

52

A47897

PLUG

- housing

1шт.

53

A47888

WICK

- oil

1шт.

55

R15145

DISC

WASHER - brake

1шт.

56

A47259

O-RING,0.244" ID x 0.391" OD

- stud

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

- stud

1шт.

58

A42199

PIN

STUD - shift lever pivot

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud retaining #37, Ext

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

A41924

GASKET

- plug

1шт.

63

R21587

PLUG

- shift lever housing

1шт.

68

D32547

LEVER

ASSEMBLY - shifter

1шт.

69

131-31

LOCK NUT,5/16"-24, G8

NUT - lock, 5/16" NF hex.

1шт.

70

A47523

DRIVE

ASSEMBLY - starter clutch

1шт.

71

R21562

GASKET

- drive end housing

1шт.

72

A47898

HOUSING

ASSEMBLY - drive end, Includes: Ref. 73 - 75

1шт.

73

A47888

WICK

- oil

1шт.

74

A47889

PLUG

- 1/8" PT slotted headless

1шт.

75

A47257

BUSHING

- drive end

1шт.

76

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing (5/16 x 23/64" NC special socket)

1шт.

77

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end housing (5/16 x 1-1/2" NC special socket)

5шт.

78

A42309

PLUNGER

- solenoid core

1шт.

79

A41922

WASHER

SEAT - boot

1шт.

80

A42308

BOOT

COVER - plunger

1шт.

81

A43380

BACK-UP RING

SEAT - spring, solenoid end

1шт.

82

A41242

SPRING

- plunger return

1шт.

83

A43419

SEAT

- spring, lever end

1шт.

84

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

85

A47931

SOLENOID

ASSEMBLY - starter

1шт.

86

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.
