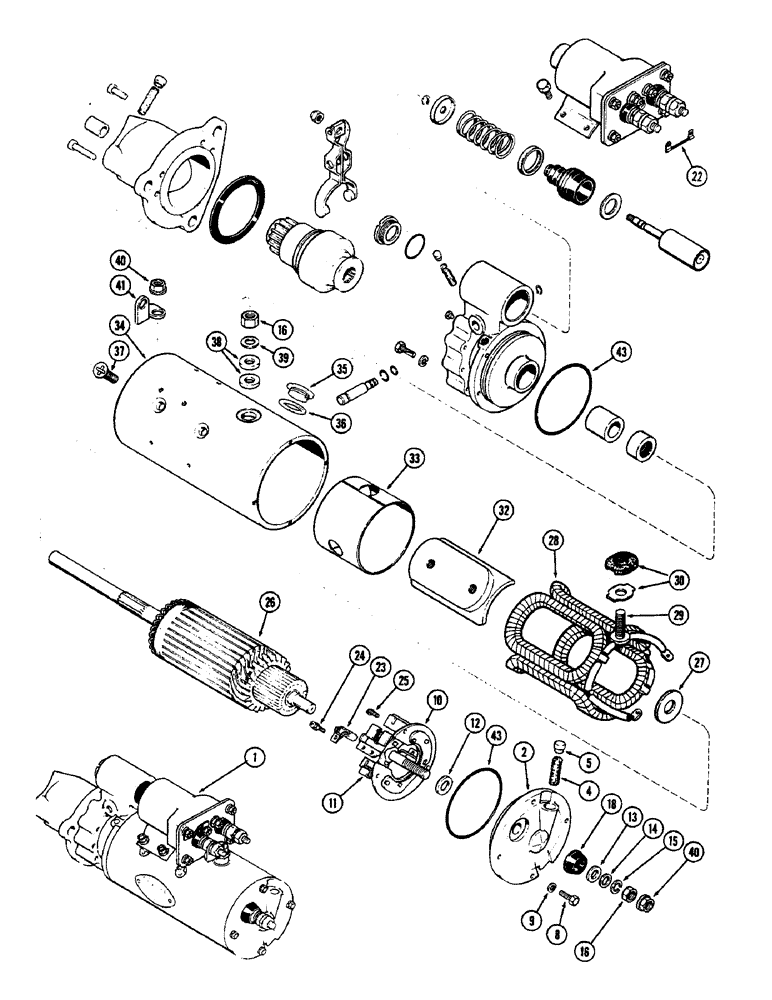

Запчасти Case IH 2470 (106) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

104215A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104215A1C

CORE-STARTER

Return Part Number

1шт.

1

A162578

ENGINE

STARTER ASSEMBLY - engine (New) (Delco-Remy #1114802), Includes: Ref. 2 - 43

1шт.

1

A47464

ALTERNATOR

STARTER ASSEMBLY - engine (Remanufactured), Includes: Ref. 2 - 43

1шт.

1

A47465

CORE-STARTER

Return Part Number- starter (Use this number to return starter core for credit), Includes: Ref. 2 - 43

1шт.

2

A47887

FRAME

FRAME ASSEMBLY - commutator end (With bushing), Includes: Ref. 4 and 5

1шт.

4

A47933

WICK

WICK - oil

1шт.

5

A47889

PLUG

PLUG - oil reservoir

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A47891

PLATE

PLATE ASSEMBLY - brush holder mounting, without brushes, Includes: Ref. 11

1шт.

11

A47892

SPRING

SPRING - brush tension

4шт.

12

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

13

D30006

WASHER

INSULATOR - terminal stud

1шт.

14

195-2067

WASHER,33/64" x 7/8" x .065"

WASHER - 33/64 x 7/8 x 1/16" (13.1 x 22.2 x 1.6 MM)

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

18

A43701

BUSHING

BUSHING - insulator, terminal stud

1шт.

22

A42408

ELECTRICAL WIRE

WIRE LEAD - solenoid ground

1шт.

23

A47934

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

24

A47894

SCREW,#8 - 32 x 5/16"

SCREW - #8-32 x 5/16" hex. head

6шт.

25

A43847

SCREW,3/8" - 32 x 1/2"

SCREW ASSEMBLY - brush plate mounting, with lockwasher

3шт.

26

A40898

ARMATURE

ARMATURE - starter

1шт.

27

A40892

WASHER

WASHER - spacer, drive housing

1шт.

28

A47855

COIL

COIL ASSEMBLY - field, Includes: Ref. 29

1шт.

29

A40896

STUD

STUD - starter terminal

1шт.

30

A41925

BUSHING

BUSHING KIT - field terminal stud

1шт.

32

R15115

SHOE

SHOE - pole

4шт.

33

A44169

INSULATOR

INSULATION - field coil

1шт.

34

NSS

NOT SOLD SEPARAT

FRAME - field (Order A162578)

1шт.

35

R21587

PLUG

PLUG - brush inspection

2шт.

36

A41924

GASKET

GASKET - inspection plug

2шт.

37

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - 3/8 x 5/8" NC flat head Phillips

8шт.

38

D30005

INSULATOR

INSULATOR - field terminal stud, outer

2шт.

39

D30006

WASHER

WASHER - field terminal

1шт.

40

A47890

NUT

NUT - 1/2" NC hex. washer, terminal stud

2шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

43

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - sealing

2шт.
