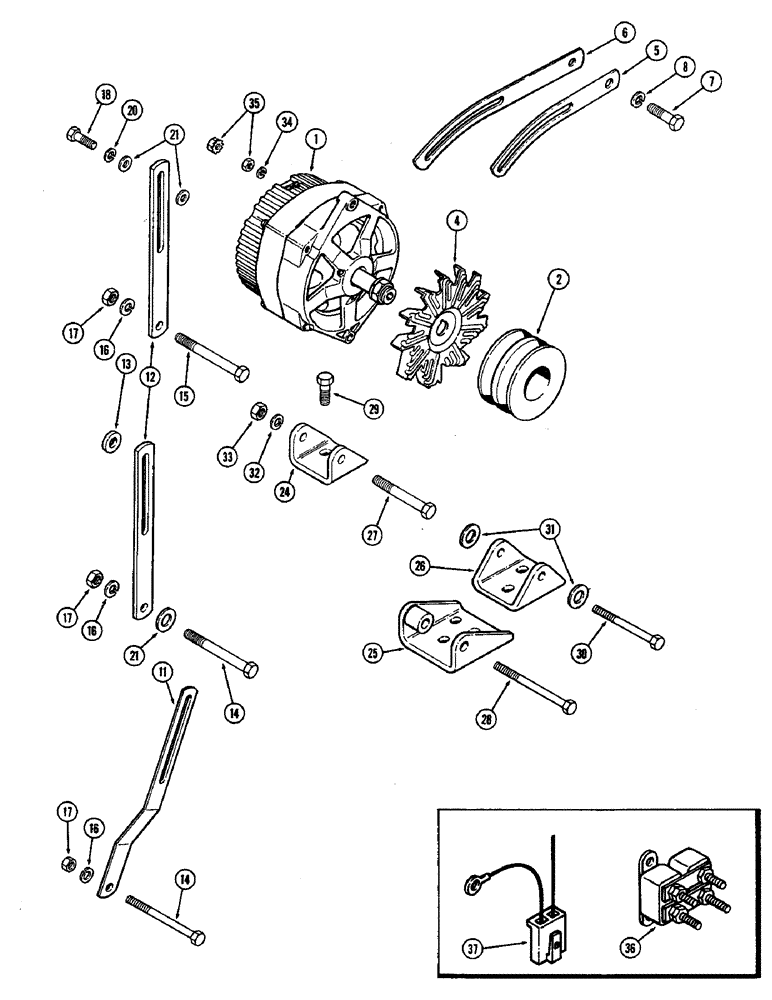

Запчасти Case IH 2470 (105A) - ALTERNATOR KIT, TO CONVERT 55 AMPERE PRESTOLITE, TO 62 AMPERE DELCO-REMY, (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - 72 ampere (See figure 116)

1шт.

2

L59716

PULLEY

- alternator

1шт.

A161438

ALTERNATOR

KIT - alternator, Includes: Ref. 4 - 37

1шт.

4

A43384

FAN

- alternator

1шт.

5

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

6

A139873

STRAP

- alternator adjusting

1шт.

7

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

A141842

STRAP

- rear support

1шт.

12

A59098

STRAP

- rear support

1шт.

13

A139874

SPACER

- support strap, 7/16 x 7/8 x 3/16" (11.17 x 22.35 x 4.83 MM)

1шт.

14

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

15

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- 8 x 1.25 x 25 MM

2шт.

WITH U.S. STANDARD AND METRIC MOUNTING HARDWARE Metric alternator has blue identification on upper mounting leg.

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

195-103

WASHER,5/16"

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

3шт.

24

A160391

BRACKET

- alternator mounting

1шт.

25

A161334

BRACKET

- alternator mounting

1шт.

26

A139871

BRACKET

- alternator mounting

1шт.

27

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

28

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

30

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

31

D41740

WASHER

- 45/64 x 1 x 7/64" hardened (17.86 x 25.4 x 2.78 MM)

2шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator battery terminal 1/4"

1шт.

35

825-1106

NUT,Hex, M6, Cl 8

- alternator battery terminal, 6 x 1 mm hex

1шт.

WITH U.S. STANDARD AND METRIC MOUNTING HARDWARE Metric alternator has blue identification on upper mounting leg.

1шт.

35

193-1008

NUT,Keps, w/LW,#12-24

- alternator battery terminal, #12-24 Keps hex.

1шт.

36

A147004

BREAKER

CIRCUIT BREAKER - 100 ampere

1шт.

37

A141700

WIRE HARNESS,Adaptor

- engine harness

1шт.
