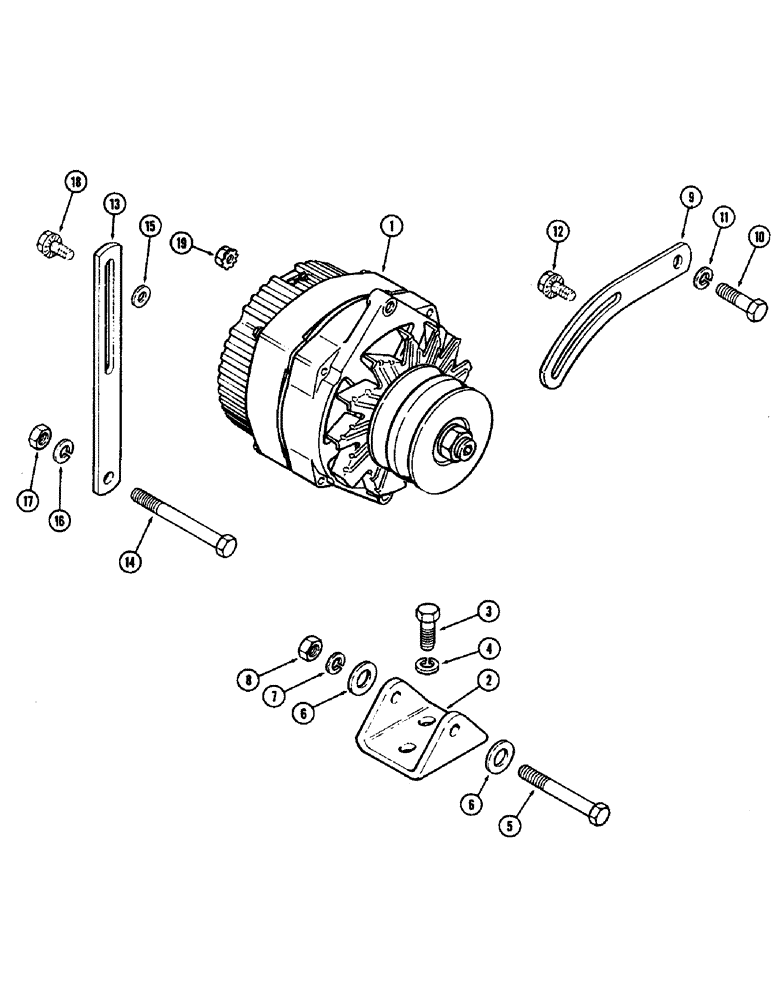

Запчасти Case IH 2470 (104) - ALTERNATOR MOUNTING, P.I.N. 8825001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - (See figure 128)

1шт.

2

A139871

BRACKET

- alternator mounting

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

6

D41740

WASHER

- 45/64 x 1 x 7/64" (17.86 x 25.4 x 2.78 MM)

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC Whizlock

1шт.

13

A59098

STRAP

- support, alternator rear

1шт.

14

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex., grade 5

1шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

1шт.

18

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC Whizlock

1шт.

19

193-1008

NUT,Keps, w/LW,#12-24

- #12-24 Keps

1шт.
