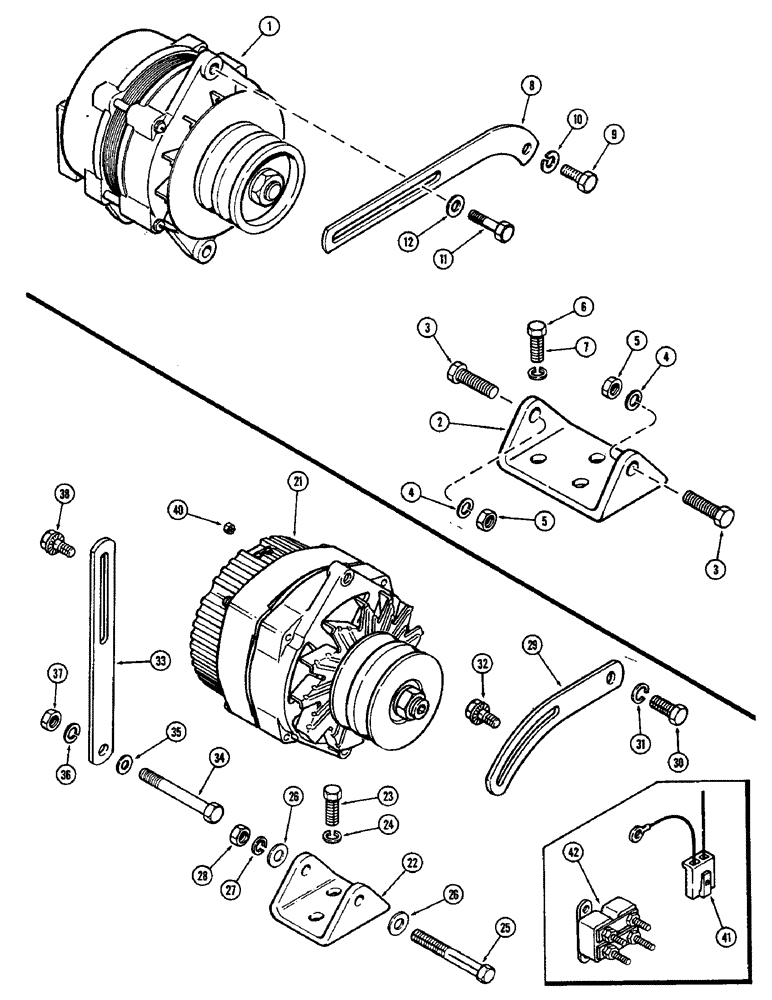

Запчасти Case IH 2470 (102) - PRESTOLITE ALTERNATOR MOUNTING, PRIOR TO P.I.N. 8825001 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (See figure 118 and 120)

1шт.

2

A61063

BRACKET

- alternator mounting

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

A77081

STRAP

- alternator adjusting

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

1шт.

A147241

ALTERNATOR

KIT - alternator, Includes: Ref. 21 - 42

1шт.

For repairs order A161438 kit, A47625 alternator and L59716 pulley, see figure 105A.

1шт.

21

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (See figure 128), convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

22

A139871

BRACKET

- alternator mounting, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard hardware

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Convert 55 ampere Prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

convert 55 ampere prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware 3/8"

3шт.

25

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Convert 55 ampere prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware Hex, 3/8"-16 x 3 1/4", G5

1шт.

26

D41740

WASHER

- 45/64 x 1 x 7/64" (17.86 x 25.4 x 2.78 MM), convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Convert 55 ampere prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware 3/8"

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Convert 55 ampere Prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware 3/8"-16, G5

1шт.

29

A34705

ADJUSTER

STRAP - alternator adjusting, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Convert 55 ampere Prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

convert 55 ampere prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware 3/8"

1шт.

32

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC, Whizlock, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

33

A59098

STRAP

- support, alternator rear, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

34

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex., grade 5, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

35

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.2 x 22.22 x 1.98 MM), convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

36

92-6

LOCK WASHER,3/8"

convert 55 ampere prestolite to 72 Delco-Remy w/ U.S. standard mounting hardware 3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" NC hex., convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

38

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC Whizlock, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

40

193-1008

NUT,Keps, w/LW,#12-24

- #12-24 Keps, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

41

A141700

WIRE HARNESS,Adaptor

- engine harness, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.

42

A147004

BREAKER

- circuit, 100 amperes, convert 55 ampere prestolite to 72 delco-remy w/ U.S. standard mounting hardware

1шт.
