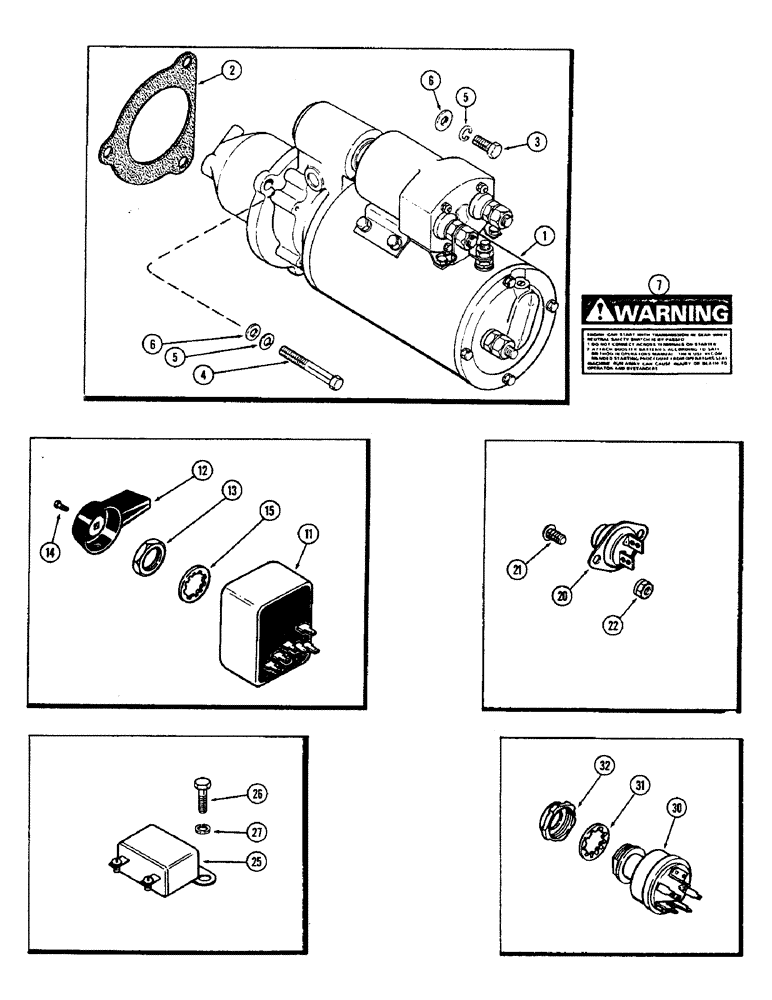

Запчасти Case IH 2470 (100) - ELECTRICAL EQUIPMENT (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - (See figure 106 - 110)

1шт.

2

A27933

GASKET

- starter

1шт.

3

113-2432

BOLT,Locking, 1/2" - 13 x 2", Gr 5

- 1/2 x 2" NC hex. lock, grade 5

2шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

A75865

WASHER

- 17/32 x 1 x 1/8" (13.49 x 25.4 x 3.17 MM)

3шт.

7

321-3709

DECAL

- Warning, starter (Replaces 321-2788)

1шт.

11

A77184

SWITCH

- flasher and turn signal

1шт.

12

A77185

KIT

PACKAGE - flasher and turn signal switch handle, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - mounting, 3/4" NF hex.

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - #5-40 x 3/8" pan head Sems

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock, 3/4" internal type

1шт.

20

A36948

SWITCH

- push button (Cold start assist)

1шт.

21

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- machine, #10 x 1/2" round head

2шт.

22

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - 310 NC hex. Keps

2шт.

25

A38787

BUZZER

- warning, hand brake

1шт.

26

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

A77312

SWITCH

- ignition

1шт.

31

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - Shakeproof, 1" internal

1шт.

32

A77314

NUT

- ignition switch mounting

1шт.
