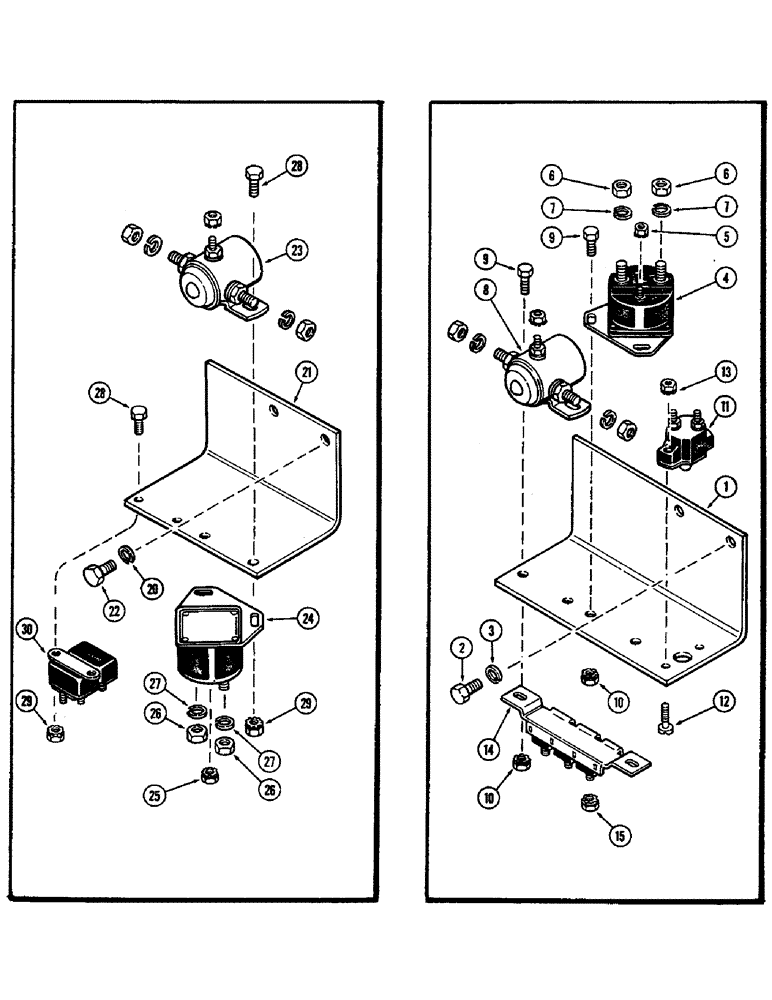

Запчасти Case IH 2470 (098) - ELECTRICAL EQUIPMENT MOUNTING, SOLENOID, STARTER SWITCH AND CIRCUIT BREAKER, P.I.N.8827741 AND AFTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A147965
BRACKET - solenoid mounting
1шт.
2
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
2шт.
3
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
4
A39079
SOLENOID
SWITCH - starter solenoid
1шт.
5
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 Keps
1шт.
6
9635082
NUT,5/16" - 18, Gr 5
2шт.
7
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
8
A143500
SOLENOID SWITCH
SOLENOID - cab
1шт.
9
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
4шт.
10
193-1006
NUT,Keps, w/LW, 1/4"-20
- 1/4"-20 Keps
4шт.
11
A147926
BREAKER
- cab circuit, 50 amperes
1шт.
12
182-562
SCREW,Slotted Pan Hd, #10-24 x 7/8"
- #10-24 x 7/8" pan head machine
2шт.
13
193-1004
NUT,Keps, #10 - 24, w/ Ext Tooth LW
NUT - #10-24 Keps
2шт.
14
A147549
BREAKER
- circuit
1шт.
15
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 Keps
3шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Pin 8826413 thru 8827740 5/16"
2шт.
21
A143909
BRACKET
- solenoid mounting, pin 8826413 - 8827740
1шт.
22
113-118
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
Pin 8826413 - 8827740 Hex, 5/16"-18 x 5/8", G5, Full Thd
2шт.
23
A143500
SOLENOID SWITCH
SOLENOID - cab, pin 8826413 - 8827740
1шт.
24
A39079
SOLENOID
SWITCH - starter solenoid, pin 8826413 - 8827740
1шт.
25
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 Keps, pin 8826413 - 8827740
1шт.
26
9635082
NUT,5/16" - 18, Gr 5
Pin 8826413 - 8827740 5/16"-18, G5
2шт.
27
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Pin 8826413 - 8827740 5/16"
2шт.
28
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
pin 8826413 - 8827740 Hex, 1/4"-20 x 5/8", G5, Full Thd
4шт.
29
193-1006
NUT,Keps, w/LW, 1/4"-20
- 1/4"-20 Keps, pin 8826413 - 8827740
4шт.
30
A147004
BREAKER
- circuit, 100 amperes, pin 8826413 - 8827740
1шт.
Выбрано товаров: 26
