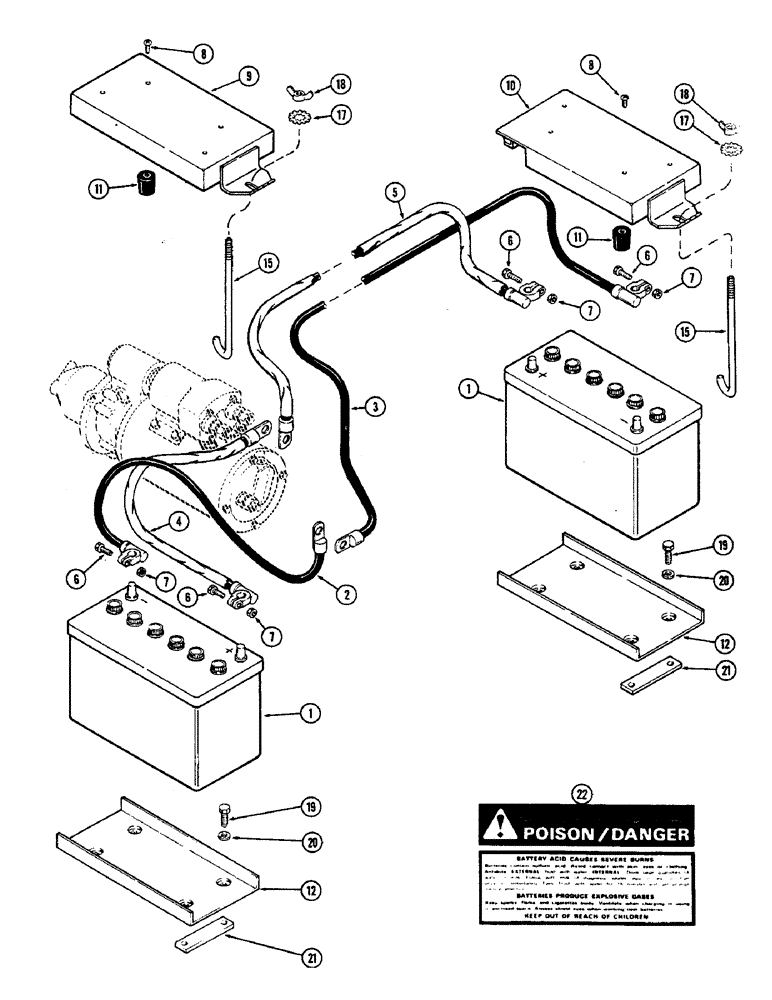

Запчасти Case IH 2470 (094) - BATTERIES, CABLES, COVERS AND CARRIERS (04) - ELECTRICAL SYSTEMS

1

A39177

X

BATTERY - 12 volt, wet (Order A38411)

2шт.

1

A38411

DRY BATTERY

- 12 volt, dry

2шт.

2

A75818

CABLE

ASSEMBLY - battery, negative, RH 31-1/2" long (800.1 MM) (Includes Refs. 6 and 7)

1шт.

3

A75819

CABLE

ASSEMBLY - battery, negative, LH, 73" long (1854.2 MM) (Includes Refs. 6 and 7)

1шт.

4

A75820

CABLE

ASSEMBLY - battery, positive, RH, 40-1/2" long (1028.7 MM) (Includes Refs. 6 and 7)

1шт.

5

A75821

CABLE

ASSEMBLY - battery, positive, LH 46" long (1168.4 MM), Includes: Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC square head

1шт.

7

129-516

NUT

- shoulder, 5/16" NC hex.

1шт.

8

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- 1/4-20 x 3/8" Phillips head

8шт.

9

A76440

COVER

- battery, RH

1шт.

10

A76441

COVER

- battery, LH

1шт.

11

A75847

FENDER

BUMPER - screw type

8шт.

12

A75848

CARRIER

- battery

2шт.

15

A143936

BOLT,Hook, 5/16" - 18 x 10mm

BOLT - hook type (Replaces D42052)

4шт.

17

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

18

G49020

NUT

- wing, 5/16" NC

4шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

A75849

SPACER

- carrier

4шт.

22

321-2996

DECAL

- poison - Danger, battery

2шт.
