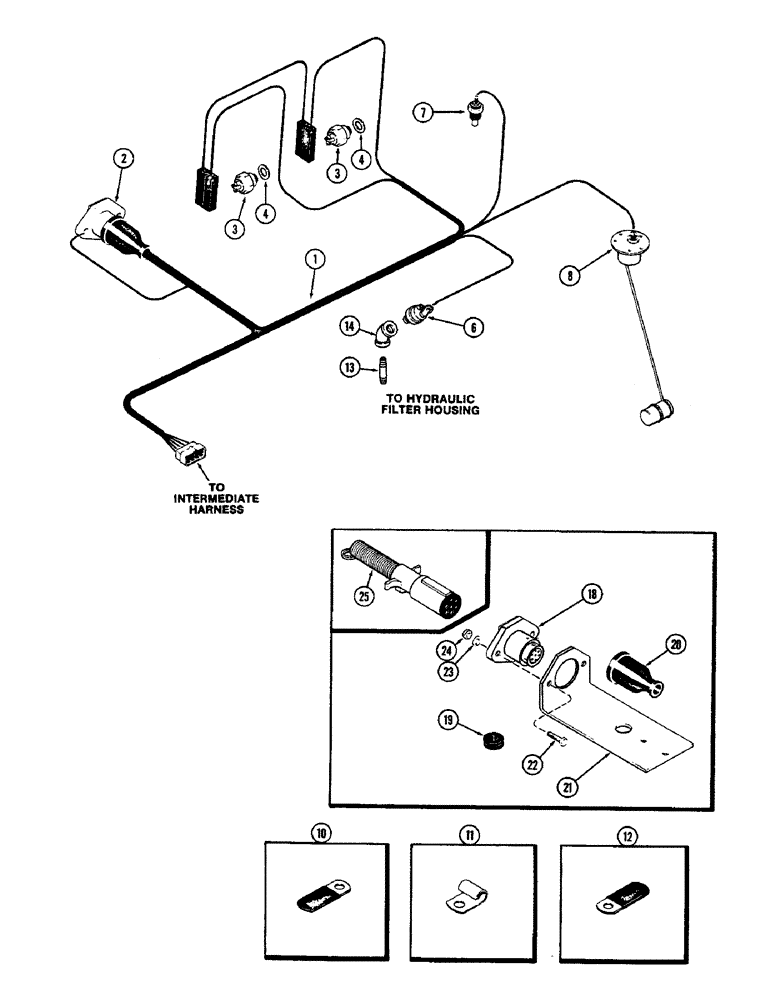

Запчасти Case IH 2470 (092) - TRANSMISSION HARNESS AND ATTACHING PARTS (04) - ELECTRICAL SYSTEMS

1

A77192

HARNESS

- wire, transmission

1шт.

2

A38739

CONNECTOR, ELEC

CONNECTOR - seven point auxiliary outlet (See A77213 kit below)

1шт.

3

A139078

SWITCH

- neutral start (Replaces A76403)

2шт.

4

G49402

SHIM,.010" Thk

Neutral start switch (0.2640 mm) .010" Thk

1шт.

6

A76479

SWITCH

- transmission oil filter pressure vacuum

1шт.

7

A21462

SENDER UNIT

SENDING UNIT - transmission temperature

1шт.

8

A76604

FUEL GAUGE

SENDING UNIT - fuel

1шт.

10

A37179

CLIP

- vinyl coated, auxiliary outlet wire to R.H. side, upper third bolt from rear sill to side plate

1шт.

11

A22880

CLIP

- vinyl coated, transmission harness to transmission top cover

1шт.

12

A38066

CLIP

- neutral start switch wire to R.H. fuel tank front lower mounting bolt

1шт.

13

221-1110

PIPE,Nipple, 1/8" NPT x 2 1/2"

NIPPLE - 1/8" PT x 2-1/2"

1шт.

14

221-1365

ELBOW,45 Degree, 1/8" NPT

- 45 degree

1шт.

A77213

KIT

- seven point auxiliary outlet, female, Includes: Ref. 18 - 24

1шт.

18

A38739

CONNECTOR, ELEC

CONNECTOR - seven point auxiliary outlet

1шт.

19

A37353

GROMMET

- rubber, 7 point auxiliary outlet

1шт.

20

A38740

GUARD

BOOT - connector, 7 point auxiliary outlet

1шт.

21

A77214

BRACKET

- outlet mounting, 7 point auxiliary

1шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

7 point auxiliary outlet Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 7 point auxiliary outlet 5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

7 point auxiliary outlet 5/16"-18, G5

4шт.

25

A139672

PLUG

- male, 7 point connector, auxiliary outlet

1шт.
