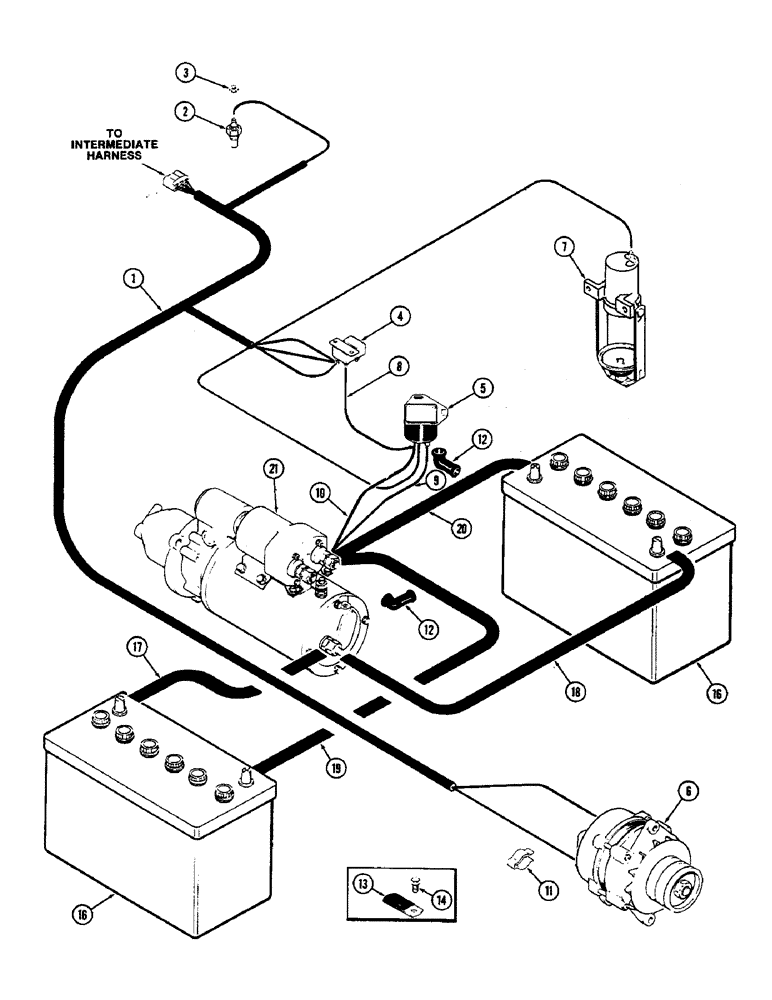

Запчасти Case IH 2470 (086) - ENGINE HARNESS AND ATTACHING PARTS, PRIOR TO P.I.N. 8825001 (04) - ELECTRICAL SYSTEMS

1

A77190

HARNESS

- wire, engine

1шт.

2

A61787

TRANSMITTER

UNIT - sending, water temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex Keps

1шт.

4

A59704

BREAKER

- circuit (See figure 96 and 98)

1шт.

5

A39079

SOLENOID

SWITCH - starters solenoid (See figure 96 and 98)

1шт.

6

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (See figure 102)

1шт.

7

REF

INSTRUCTION

SOLENOID - cold start assist (See figure 18)

1шт.

8

A75824

CABLE

- starter solenoid-battery terminal to circuit breaker battery terminal

1шт.

9

A75825

CABLE

- starter solenoid switch

1шт.

10

D47797

CABLE

- starting motor solenoid-battery terminal to starter solenoid

1шт.

11

A60894

CLIP

- alternator wires to engine breather tube

4шт.

12

A21753

CAP

- rubber, starter-positive terminal solenoid-battery terminal

2шт.

13

A37179

CLIP

- vinyl coated, alternator wire to RH top of engine

1шт.

14

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Alternator wire clip to engine block Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

16

REF

INSTRUCTION

BATTERY - 12 volt (See figure 94)

2шт.

17

A75818

CABLE

ASSEMBLY - RH battery-negative terminal to starter grounding bolt (See figure 94)

1шт.

18

A75819

CABLE

ASSEMBLY - LH battery-negative terminal to starter grounding bolt (See figure 94)

1шт.

19

A75820

CABLE

ASSEMBLY - RH battery-positive terminal to starter solenoid-battery terminal (See figure 94)

1шт.

20

A75821

CABLE

ASSEMBLY - LH battery-positive terminal to starter solenoid-battery terminal (See figure 94)

1шт.

21

REF

INSTRUCTION

STARTING MOTOR ASSEMBLY - (See figure 100)

1шт.
