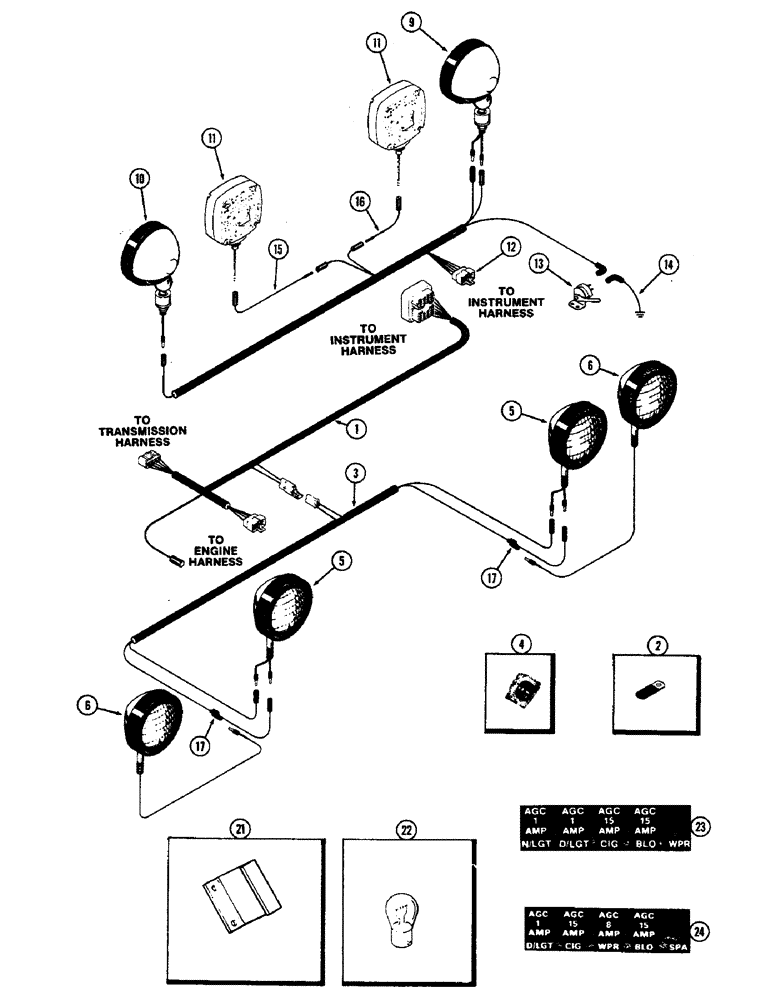

Запчасти Case IH 2470 (084) - ELECTRICAL EQUIPMENT AND WIRING, INTERMEDIATE, FRONT AND REAR LAMP HARNESS P.I.N. 8825001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A143621

HARNESS

- wire, intermediate

1шт.

2

A37179

CLIP

- vinyl coated (Intermediate harness to bolt on LH side of firewall)

1шт.

3

A77193

HARNESS

- front lamps

1шт.

4

A27338

GROMMET

- (2-rear cap, 2-front cap)

4шт.

5

A75834

LAMP

ASSEMBLY - front driving (2 filament) (See figure 134)

2шт.

6

A59724

HEADLAMP

LAMP ASSEMBLY - front flood (See figure 134)

2шт.

9

A59703

LAMP

ASSEMBLY - rear flood and tail (LH side) (See figure 136)

1шт.

10

A63822

HEADLIGHT

LAMP ASSEMBLY - rear flood (RH side) (See figure 136)

1шт.

11

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher (Replaces F89713) (See figure 130)

2шт.

12

F63852

HARNESS

- wire, rear lamps

1шт.

13

A33977

SWITCH

- hand brake (See figure 238)

1шт.

14

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

15

F63584

CABLE

- warning light (RH)

1шт.

16

F63585

CABLE

- warning light (LH)

1шт.

17

A62556

CONNECTOR, ELEC

CONNECTOR - wire

2шт.

A149088

KIT

ELECTRICAL KIT - cab modification, Includes: Ref. 21 - 24

1шт.

21

F64402

CLIP

- wire, plastic

1шт.

22

W10478

LAMP

BULB - lamp

1шт.

23

321-3850

DECAL

- fuse block (Cab serial no. 7882601 and after)

1шт.

24

321-2738

DECAL

- fuse block (Prior to cab serial no. 7882601)

1шт.
