(082) - ELECTRICAL EQUIPMENT AND WIRING, INTERMEDIATE, FRONT AND REAR LAMP HARNESS PRIOR P.I.N. 8825001

Запчасти Case IH 2470 (082) - ELECTRICAL EQUIPMENT AND WIRING, INTERMEDIATE, FRONT AND REAR LAMP HARNESS PRIOR P.I.N. 8825001 (04) - ELECTRICAL SYSTEMS

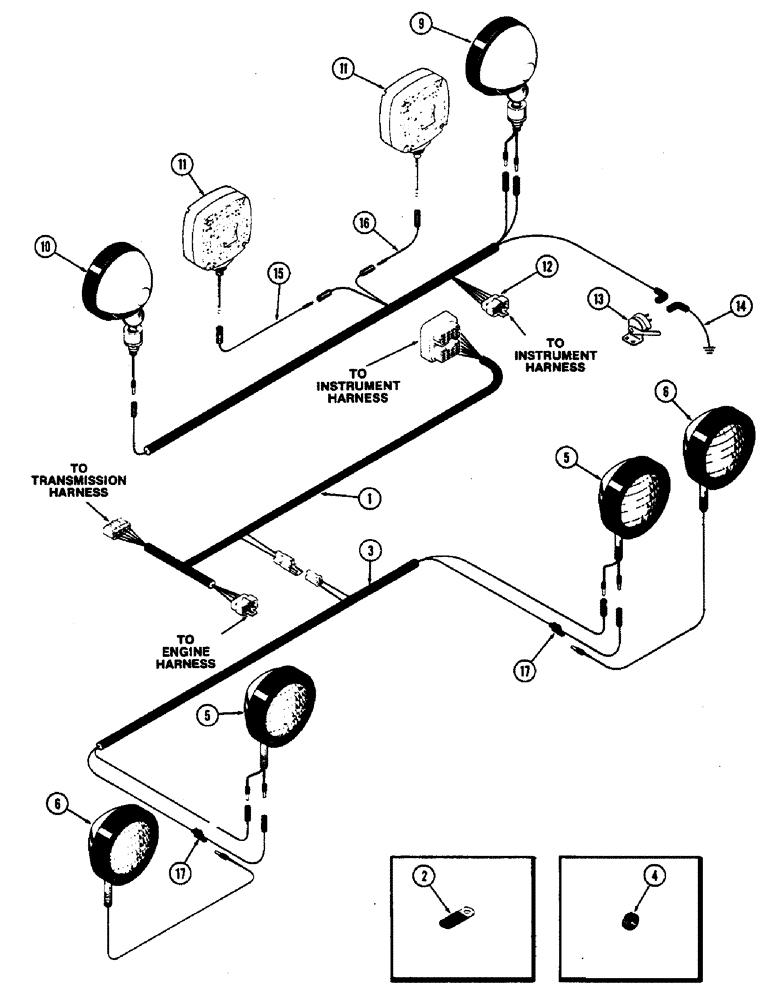

Схема запчастей Case IH 2470 - (082) - ELECTRICAL EQUIPMENT AND WIRING, INTERMEDIATE, FRONT AND REAR LAMP HARNESS PRIOR P.I.N. 8825001 (04) - ELECTRICAL SYSTEMS
9
11
13
12
6
1
11
5
17
4
14
16
15
6
10
2
3
17
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A77191

HARNESS

- wire, intermediate

1шт.

2

A37179

CLIP

- vinyl coated (Intermediate harness to bolt on LH side of firewall)

1шт.

3

A77193

HARNESS

- front lamps

1шт.

4

A27338

GROMMET

- (2-rear cap, 2-front cap)

4шт.

5

A75834

LAMP

ASSEMBLY - front driving (2 filament) (See figure 134)

2шт.

6

A59724

HEADLAMP

LAMP ASSEMBLY - front flood (See figure 134)

2шт.

9

A59703

LAMP

ASSEMBL - rear flood and tail (LH side) (See figure 136)

2шт.

10

A63822

HEADLIGHT

LAMP ASSEMBLY - rear flood (RH side) (See figure 136)

1шт.

11

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher (Replaces F89713) (See figure 130)

2шт.

12

F63852

HARNESS

- wire, rear lamps

1шт.

13

A33977

SWITCH

- hand brake (See figure 238)

1шт.

14

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

15

F63584

CABLE

- warning light (RH)

1шт.

16

F63585

CABLE

- warning light (LH)

1шт.

17

A62556

CONNECTOR, ELEC

CONNECTOR - wire

2шт.
