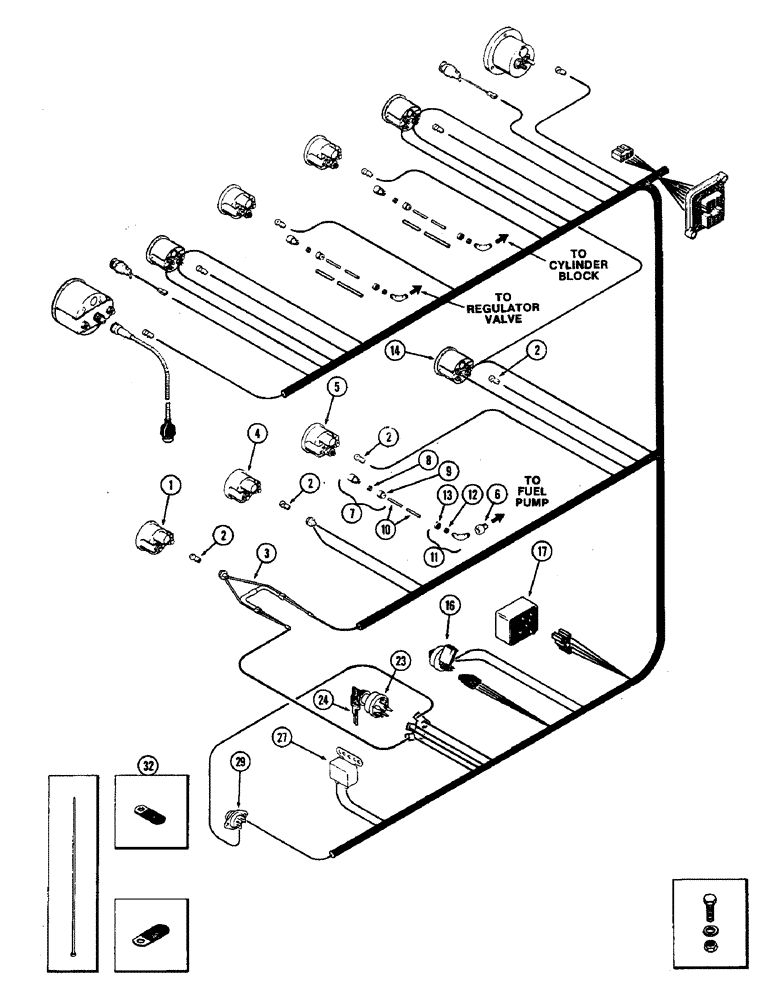

Запчасти Case IH 2470 (080) - INSTRUMENTS AND WIRING, LOWER INSTRUMENTS, P.I.N. 8825001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A59687

DIAL

CASE - alternator warning lamp

1шт.

2

A14553

BULB

- gauge (Clear)

4шт.

3

A137562

HARNESS

RECEPTACLE - alternator warning lamp wire and socket

1шт.

4

A76411

TRANSMISSION

CASE - transmission oil filter pressure lamp

1шт.

5

A75827

ELECTRICAL GAUGE

GAUGE - fuel pressure

1шт.

6

A161432

FITTING

SNUBBER - fuel pressure gauge (Replaces A28061)

1шт.

7

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSEMBLY - fuel pressure gauge tube, Includes: Ref. 8 and 9

1шт.

8

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

9

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

10

A59685

TUBE

- fuel pressure

1шт.

11

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degrees, 1/8" tube, 1/8" PT, Includes: Ref. 12 and 13

1шт.

12

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

13

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

14

A143676

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

16

A64499

SWITCH

ASSEMBLY - lights (See figure 132)

1шт.

17

A77184

SWITCH

- flasher and turn signal (See figure 100)

1шт.

23

A77312

SWITCH

- itgnition (See figure 100)

1шт.

Ref. 23 - Switch is for ignition and Cab Door.

1шт.

24

A77313

SET OF 2 KEYS

KEY - ignition (Set of 2)

1шт.

27

A38787

BUZZER

- warning, hand brake (See figure 100)

1шт.

29

A36948

SWITCH

- push button, cold start assist (See figure 100)

1шт.

32

A37179

CLIP

- vinyl coated (Fuel senser and transmission temperature wire to brake housing LH bolt - third from top)

1шт.
