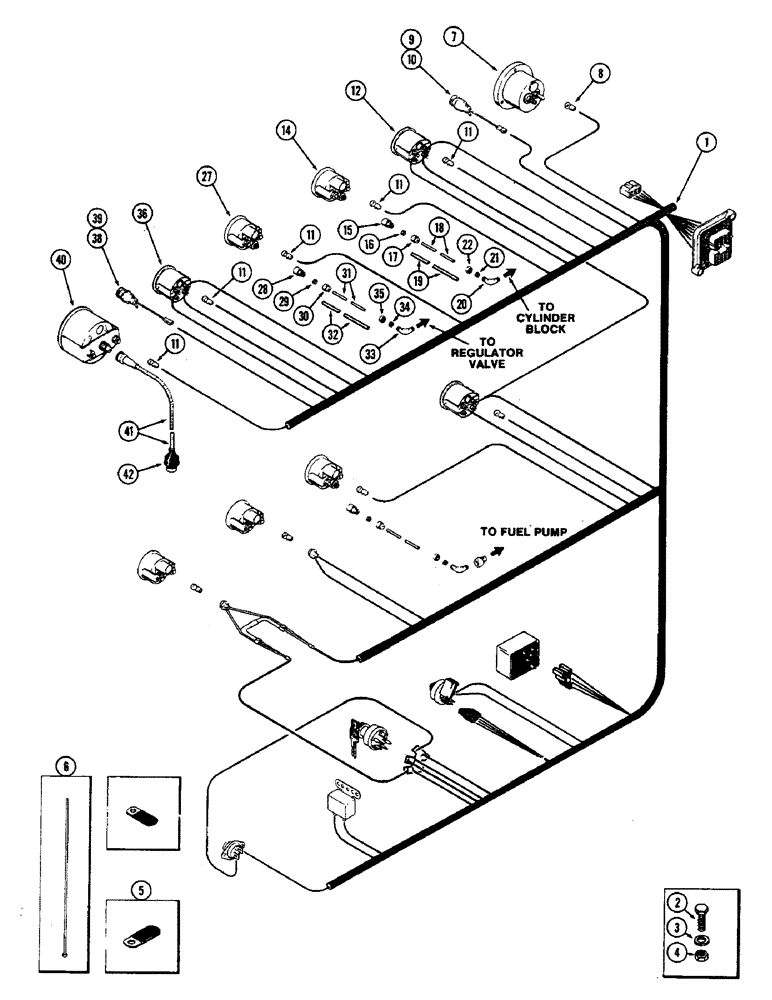

Запчасти Case IH 2470 (078) - INSTRUMENTS AND WIRING, UPPER INSTRUMENTS, P.I.N. 8825001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A147537

HARNESS

- wire, instrument panel (Replaces A143620)

1шт.

223-15

FUSE,15 Amp, Type 3AG

- 15 amperes

2шт.

2

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Harness to firewall Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

A22883

CLIP

- vinyl coated, Serial Range: harness-panel

1шт.

6

A160890

STRAP

CLIP - nylon, harness to tubing (Replaces L11541)

6шт.

7

A139032

KIT

GUAGE - Pyrometer Guage Kit

1шт.

8

T29381

BULB

- gauge, 12 volt

1шт.

9

A77188

LAMP

ASSEMBLY - left turn indicator, Includes: Ref. 10

1шт.

10

A44797

BULB

- left turn indicator, green

1шт.

11

A14553

BULB

- gauge, clear

5шт.

12

A143677

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

14

A62006

GAUGE

- engine oil pressure

1шт.

15

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR ASSEMBLY - flex tube, 3/16" tube OD, Includes: Ref. 16 and 17

1шт.

16

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

17

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

18

A66386

TUBE

- engine oil pressure

1шт.

19

A59680

LOOM

- engine oil pressure tube

1шт.

20

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSEMBLY - 90 degrees, flex tube, 3/16" tube OD, Includes: Ref. 21 and 22

1шт.

21

222-101

SLEEVE,3/16" Tube

- for 3/16" Tube

1шт.

22

222-111

TUBE NUT,7/16" - 24

NUT - for 3/16" tube

1шт.

27

A59684

ELECTRICAL GAUGE

GAUGE - transmission oil pressure

1шт.

28

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSEMBLY - flex tube, 1/8" tube OD, Includes: Ref. 29 and 30

1шт.

29

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

30

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

31

A138166

TUBE

- transmission oil pressure gauge

1шт.

32

A138167

LOOM

- transmission oil pressure tube

1шт.

33

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degrees, flex tube, 1/8" tube OD, Includes: Ref. 34 and 35

1шт.

34

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

35

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

36

A143679

ELECTRICAL GAUGE

GAUGE - transmission oil temperature

1шт.

Ref. 36 - check it by centerline of pointer and centerline of color band should be 220 degrees.

1шт.

38

A77188

LAMP

ASSEMBLY - right turn indicator, Includes: Ref. 39

1шт.

39

A44797

BULB

- right turn indicator, green

1шт.

40

A75831

TACHOMETER

- engine RPM

1шт.

41

A39403

CABLE

- tachometer

1шт.

Ref. 41 - 50 1/2"

1шт.

42

A24523

KIT

- tachometer cable repair

1шт.
