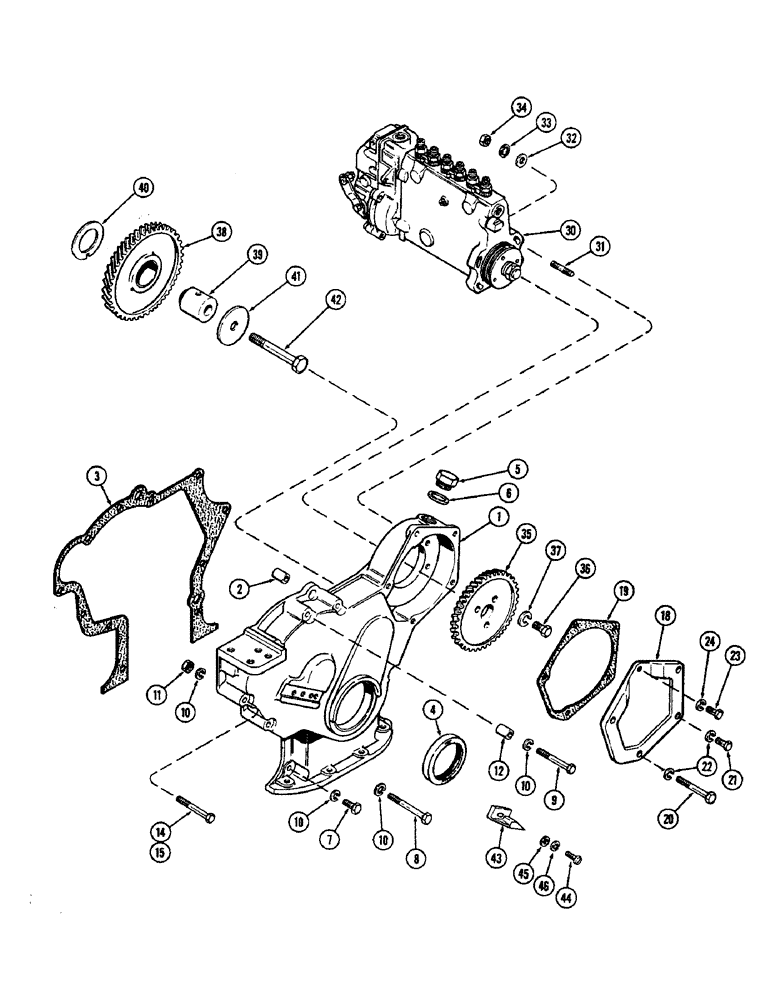

Запчасти Case IH 2470 (072) - TIMING GEAR COVER, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A63909
COVER
ASSEMBLY - timing gear, Includes: Ref. 2
1шт.
2
A58611
PIN
- dowel, cover
2шт.
3
A58612
GASKET
-, Serial Range: cover-block
1шт.
4
A62049
OIL SEAL
- crankshaft, front
1шт.
5
A21140
PLUG
- timing window
1шт.
6
A58613
SEALING WASHER
GASKET - plug, timing window, nylon
1шт.
7
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
8
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" NC hex., grade 5
2шт.
9
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" NC hex., grade 5
1шт.
10
92-6
LOCK WASHER,3/8"
9шт.
11
25-106
NUT,3/8"-16, G5
- 3/8" hex.
2шт.
12
A19774
BUSHING
SPACER - alternator pry point
1шт.
14
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" NC hex., grade 5
1шт.
15
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
- 3/8 x 3-3/4" NC hex., grade 5
1шт.
18
A61053
COVER
- fuel pump gear
1шт.
19
A58615
GASKET
- fuel pump gear cover
1шт.
20
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" NC hex., grade 5
2шт.
21
A151921
BOLT
- 3/8-16 x 1-3/4" hex. drilled for anti-tamper wire, grade 5 (Replaces A148253)
2шт.
22
92-6
LOCK WASHER,3/8"
4шт.
23
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
24
92-5
LOCK WASHER,5/16"
1шт.
30
REF
INSTRUCTION
PUMP ASSEMBLY - fuel injection (See figure 68 and 70), drive
1шт.
31
A142092
STUD
- 3/8" NC x 1-7/8" drilled for anti-tamper wire, fuel injection pump drive
1шт.
31
A58689
STUD
- 3/8" NC x 1-7/8", fuel injection pump drive
3шт.
32
A57470
WASHER
- 13/32 x 11/16 x 1/16" (10.32 x 17.46 x 1.59 MM), fuel injection pump drive
4шт.
33
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, , Fuel injection pump drive Int Tooth, 3/8"
4шт.
34
25-126
SLOTTED NUT,3/8"-16, G5
NUT - 3/8" NC hex. slotted used with A142092 stud, fuel injection pump drive
1шт.
34
25-106
NUT,3/8"-16, G5
- 3/8" NC hex. used with A58689 stud, fuel injection pump drive
3шт.
35
A58693
GEAR
- injection pump drive, fuel
1шт.
36
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Fuel injection pump drive Hex, 3/8"-16 x 1", G5, Full Thd
3шт.
37
92-6
LOCK WASHER,3/8"
fuel injection pump drive 3/8"
3шт.
38
A62542
GEAR
ASSEMBLY - idler, fuel injection pump drive
1шт.
39
A58690
SHAFT
- idler gear, fuel injection pump drive
1шт.
40
A58691
WASHER
- thrust, idler shaft, fuel injection pump drive
1шт.
41
A58692
PLATE
- thrust, idler shaft, fuel injection pump drive
1шт.
42
13-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
Injection pump drive Hex, 1/2"-13 x 4 1/4", G5
1шт.
43
A63911
INDICATOR
POINTER - timing, fuel injection pump drive
1шт.
44
169-119
SCREW,Sl Fil Hd, #12 - 24 x 3/4"
- machine #12-24 x 3/4" fillister head slotted, fuel injection pump drive
1шт.
45
195-16
WASHER,#12
- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 MM), fuel injection pump drive
1шт.
46
192-108
LOCK WASHER,#12
WASHER - lock, , fuel injection pump drive #12
1шт.
Выбрано товаров: 40
