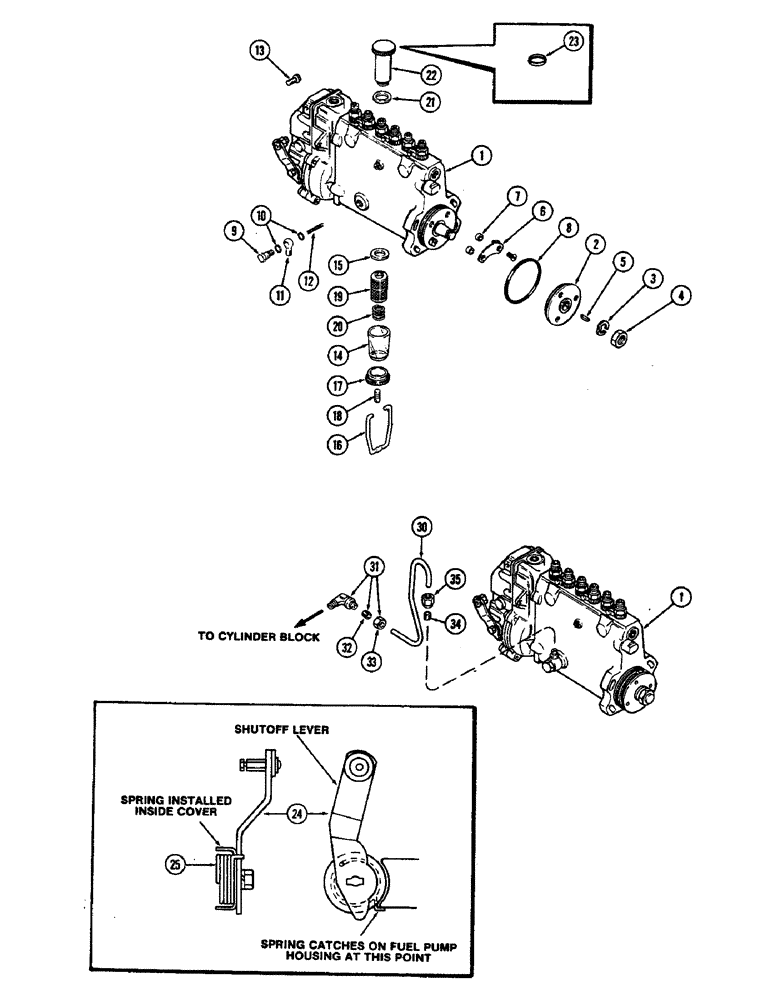

Запчасти Case IH 2470 (070) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE, WITH LUBE TUBE ON INSIDE (03) - FUEL SYSTEM

1

A64643

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (2200 RPM) (Order A138045, A136903 and 2-222-42 from figure 68), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

65

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- 2-21/64 x 3-3/16 x 1/8" (59.13 x 80.96 x 3.18 MM)

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump, banjo type

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - lock, pump stop control cable

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer pump, copper 5/8 x 49/64 x 1/32" (15.87 x 19.45 x 0.79 MM)

2шт.

22

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- rubber, 21/32 x 1-1/16 x 5/64" (8.33 x 26.99 x 1.98 MM)

1шт.

24

A66116

CABLE

LEVER - shutoff, without bowden wire connector

1шт.

Lever A59101 stop control pivot.

1шт.

A spring has been provided for the fuel shut-off lever to hold it open during operation and provide full fuel. See inset. Pumps with this spring are stamped with the letter S following the Case part no.

1шт.

24

A45273

LEVER ASSEMBLY - shutoff, with bowden wire connector

1шт.

A spring has been provided for the fuel shut-off lever to hold it open during operation and provide full fuel. See inset. Pumps with this spring are stamped with the letter S following the Case part no.

1шт.

25

A45277

SPRING - pump shutoff lever

1шт.

30

A58717

TUBE

- oil gallery to injection pump

1шт.

31

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, 1/4" tube x 1/8" PT, to cylinder block, Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

34

222-102

SLEEVE,1/4" Tube

(Tube to pump fitting) 1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (Tube to pump fitting)

1шт.
