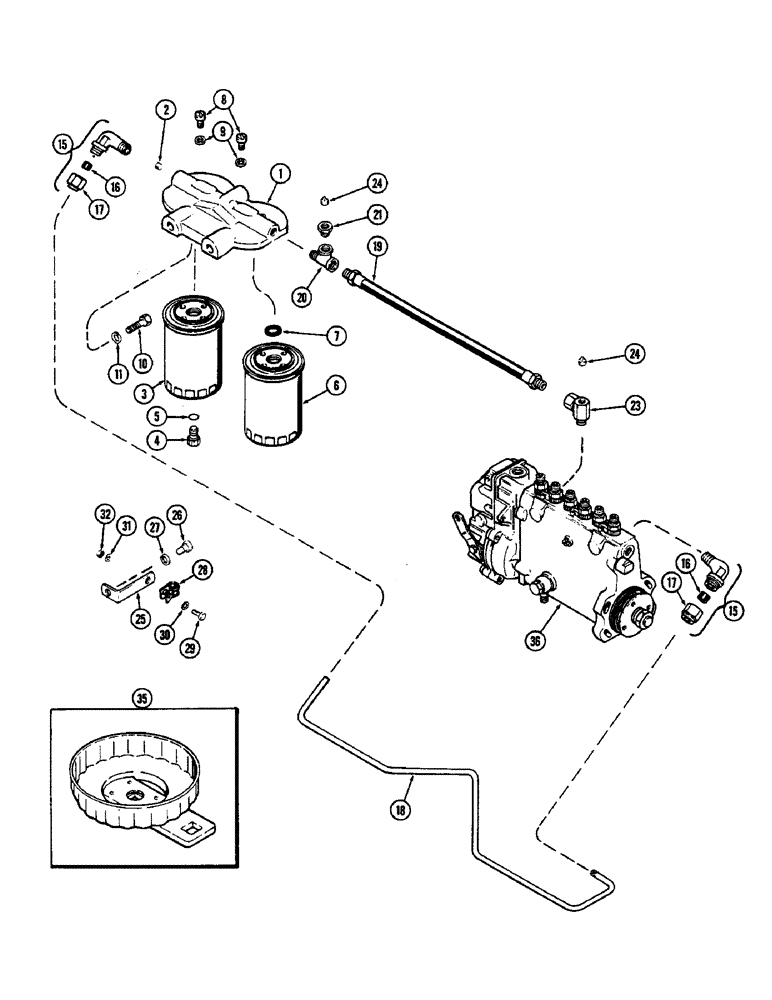

Запчасти Case IH 2470 (066) - FUEL FILTERS, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - filter mounting, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" PT socket (Replaces A62339)

1шт.

A44068

FUEL FILTER

ELEMENT KIT - fuel filter, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - first stage, Includes: Ref. 4 and 5

1шт.

4

G49080

PLUG

- 3/8" NC, 10 point head (Plastic)

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - second stage, Includes: Ref. 7

1шт.

7

A42315

GASKET

- second stage filter

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bled, #10-32 x 5/16" slotted oval round head

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, 13/64 x 5/16 x 1/32" aluminum (5.16 x 7.94 x 0.79 MM) (Replaces A66619)

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - fuel line, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

- for 3/8" tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 3/8" tube

1шт.

18

A62342

TUBE

- injection, Serial Range: pump-filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump, 15-3/8" long (390.53 MM) (Replaces A57865)

1шт.

20

221-1691

TEE,Street, 1/4" NPT

- 1/4" PT, street

1шт.

21

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, 1/4" PT to 1/8" PT

1шт.

23

A20539

FITTING

UNION - switch, injection pump

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, 1/8" PT

2шт.

25

A64856

BRACKET

- tube support

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube, for 3/8" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.

35

A64761

TOOL

- filter removing

1шт.

36

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 68 and 70)

1шт.
