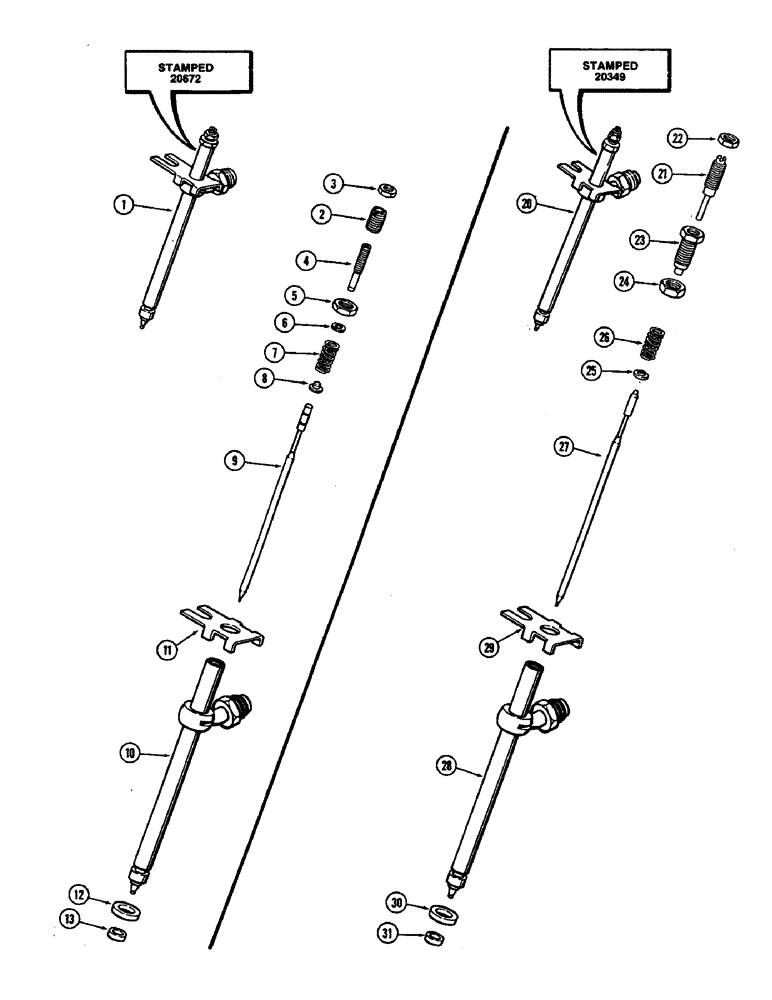

Запчасти Case IH 2470 (064) - FUEL INJECTION NOZZLE, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A138323

NOZZLE CAP

NOZZLE ASSEMBLY - injection (Replaces A76193) (Supplier no. 20672 on body) (Color code red and white), Includes: Ref. 2 - 13

6шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

A138323R

REMAN-INJECT NOZZLE

2470 AFTER S/N 8762940 (1/72-12/79)

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

3

A43602

NUT

- lock, lift adjusting, #10-56 hex.

1шт.

4

A45292

SCREW

- pressure adjusting

1шт.

5

A42424

LOCK NUT

- lock, pressure adjusting, 5/16" - 48 hex.

1шт.

6

A45632

SHIM

SEAT - upper, pressure adjusing spring (Replaces A45291)

1шт.

7

A45290

SPRING

- pressure, 11/16" (17.46 MM) Free length (Green code)

1шт.

8

A45289

SEAT

- lower, pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

11

A41768

PLATE

- locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

20

A76193

NUT

NOZZLE ASSEMBLY - fuel injection (Order A138323) (Supplier's no. 20349 on body) (Color code red and white), prior to eng s/n 2577908, Includes: Ref. 21 - 31

6шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

A138323R

REMAN-INJECT NOZZLE

2470 (AFTER S/N 8762940) Prior to ENG S/N 2577908 (1/72-12/79), Reman for new PN A76193

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

21

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, prior to engine, Start Serial: 2577908

1шт.

22

A43602

NUT

- lock - lift screw, #10-56 hex., prior to engine, Start Serial: 2577908

1шт.

23

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, prior to engine, Start Serial: 2577908

1шт.

24

A42424

LOCK NUT

- lock, pressure adjusting screw (5/16" - 48), prior to engine, Start Serial: 2577908

1шт.

25

A44369

SEAT

- spring, prior to engine, Start Serial: 2577908

1шт.

26

A43601

SPRING

- pressure, 1/2" (12.7 MM) Free length (Brown stripe code), prior to engine, Start Serial: 2577908

1шт.

27

NSS

NOT SOLD SEPARAT

VALVE - nozzle, prior to engine, Start Serial: 2577908

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - nozzle, prior to engine, Start Serial: 2577908

1шт.

29

A41768

PLATE

- nozzle locating, prior to engine, Start Serial: 2577908

1шт.

30

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, prior to engine, Start Serial: 2577908

1шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.

31

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, prior to engine, Start Serial: 2577908

1шт.

Whenever nozzle is removed from head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back in head.

1шт.
