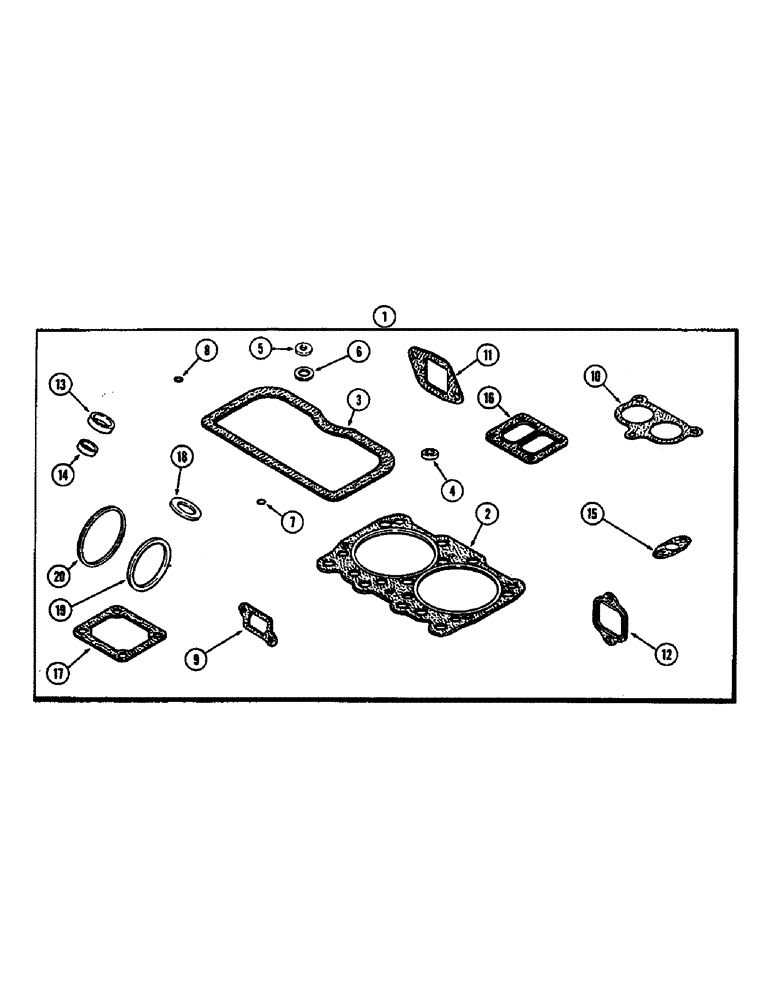

Запчасти Case IH 2470 (054) - ENG. GASKET KITS, 504BDT DIESEL ENG, VALVE GRIND KIT, USE WITH 5.092" TO 5.097" FIRE DAM DIA. SLEEVE (02) - ENGINE

1

A157301

GASKET KIT

- valve grind (Replaces A151406), Includes: Ref. 2 - 20

1шт.

For complete engine overhaul order 1-A157301, 1-A44075 and A152479.

1шт.

2

A142481

GASKET

- cylinder head

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

3шт.

4

A142098

GROMMET

GASKET - cover studs (Rubber) (Replaces A23684)

6шт.

5

A34133

GASKET

- breather tube (Fiber)

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake and exhaust valve stems

12шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold (Metal faced) (Replaces A58895)

6шт.

13

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle

6шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzle

6шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

- turbocharger

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

1342829C1

GASKET

- injection nozzle; Replaces A76640

6шт.

19

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

20

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.
