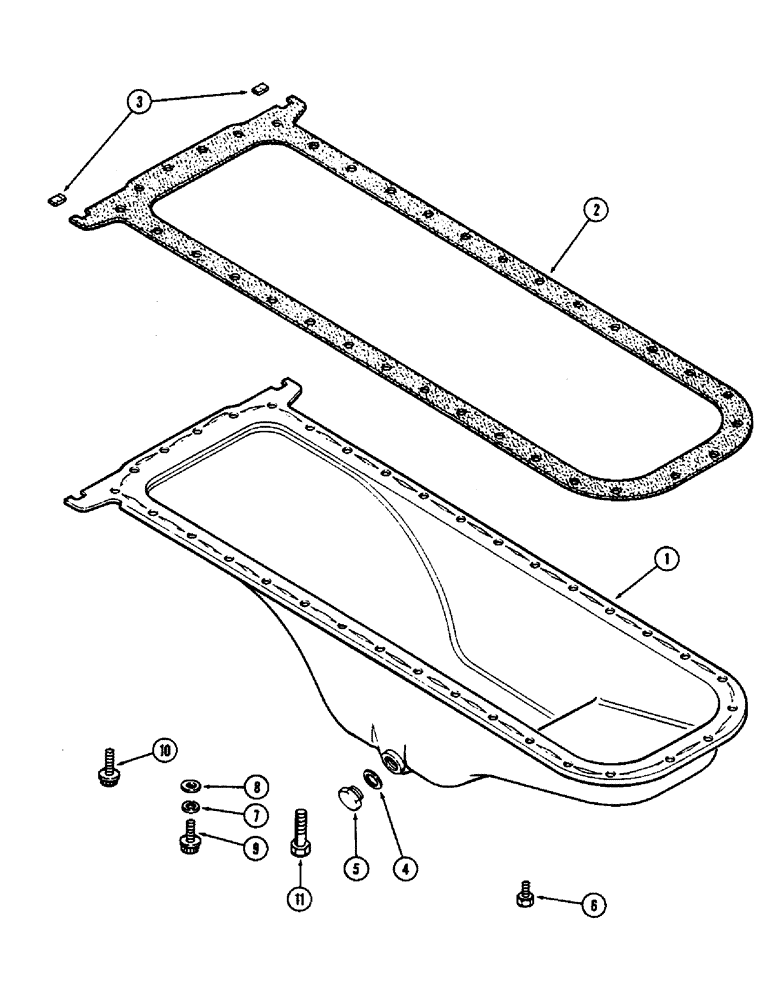

Запчасти Case IH 2470 (050) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148755

PAN, ENGINE OIL

PAN - oil (Replaces A75291)

1шт.

2

A150688

GASKET

- oil pan

1шт.

3

A75308

OIL PAN GASKET SET

- oil pan corners

2шт.

4

A27968

RING

- drain plug

1шт.

5

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

6

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - 3/8 x 7/8" NC hex. Sems

28шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

2шт.

9

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 3/8 x 1-1/4" NC ferry head cap, oil pan rear seal, outside holes

2шт.

10

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

- 3/8 x 1-1/2" hex. head sems, corner holes, oil pan rear seal

2шт.

11

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- 3/8 x 5-1/2" NC hex., grade 5, inside holes, oil pan rear seal (Replaces 13-688)

2шт.
