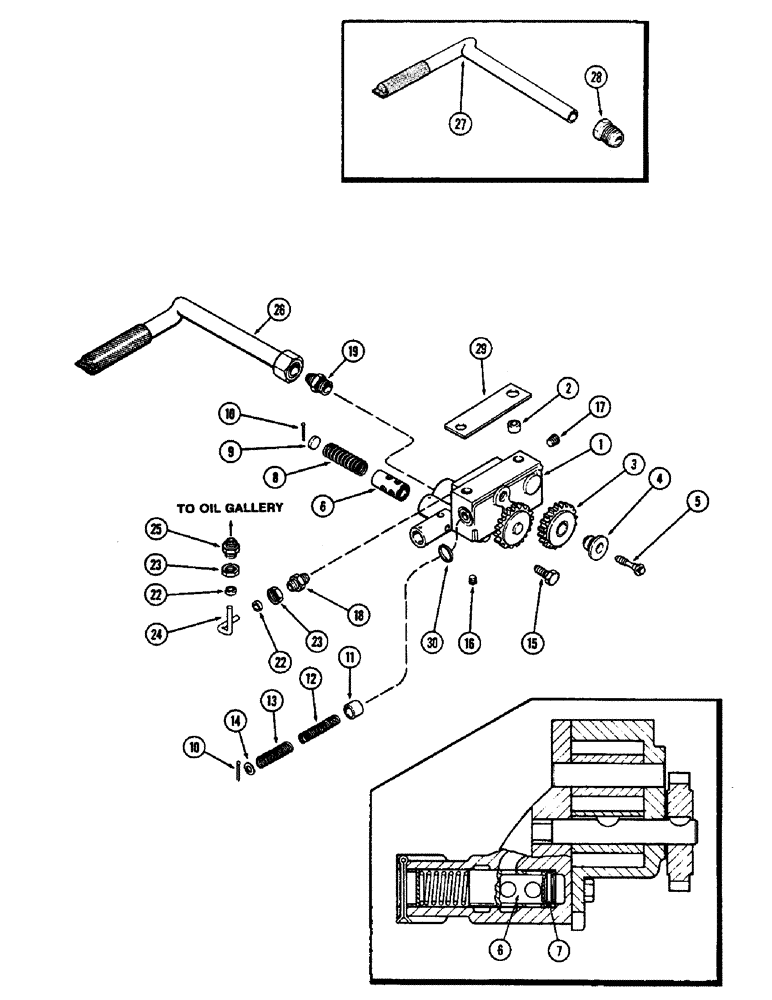

Запчасти Case IH 2470 (048) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - oil (Replaces A66002 and A140444), Includes: Ref. 2 - 18

1шт.

2

A58915

SLEEVE

- oil pump body

1шт.

3

A63941

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - 3/8" - 16 NC Ferry cap, LH, grade 8

1шт.

6

A75286

VALVE

ASSEMBLY - relief, w/cup plug

1шт.

7

138-2063

PIN,3/32" x 1", Coiled

1шт.

8

A63949

SPRING

- relief valve, 2-7/8" free length (73.03 MM)

1шт.

9

41-1016

PLUG,Cup, 1"

- relief valve

1шт.

10

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), 3/32" x 2"

2шт.

11

A76152

VALVE

- safety, pressure relief

1шт.

12

A76154

SPRING

- inner, 3-7/64" free length (78.98 MM)

1шт.

13

A76153

SPRING

- outer, 2-7/16" free length (61.91 MM)

1шт.

14

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) (Replaces 195-25) 3/8", SAE

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Cover to body Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- 1/16" PT square socket head, in cover

3шт.

17

221-1843

PLUG

- 3/8" PT hex. socket head (Replaces 221-843)

1шт.

18

22-4022

CONNECTOR - flex, (1/4" tube x 1/8" PT)

1шт.

19

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube, 1-5/16"-12 x 1-1/4"-18

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting

2шт.

24

A75290

TUBE

- oil pump gallery sensing

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex tube, 1/4" tube OD, in block

1шт.

26

A142503

SCREEN

TUBE ASSEMBLY - suction, includes screen (replaces A75288)

1шт.

27

A75288

SCREEN

ASSEMBLY - includes screen (Order ref. 19 and 26)

1шт.

28

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube, 1" flare (Used W/A75288 tube)

1шт.

29

A58859

SHIM,.005" Thk

Oil pump (0.1270 mm) .005" Thk

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 59/64 x 1-1/8" x 7/64" (23.42 x 28.58 x 2.78 MM)

1шт.
