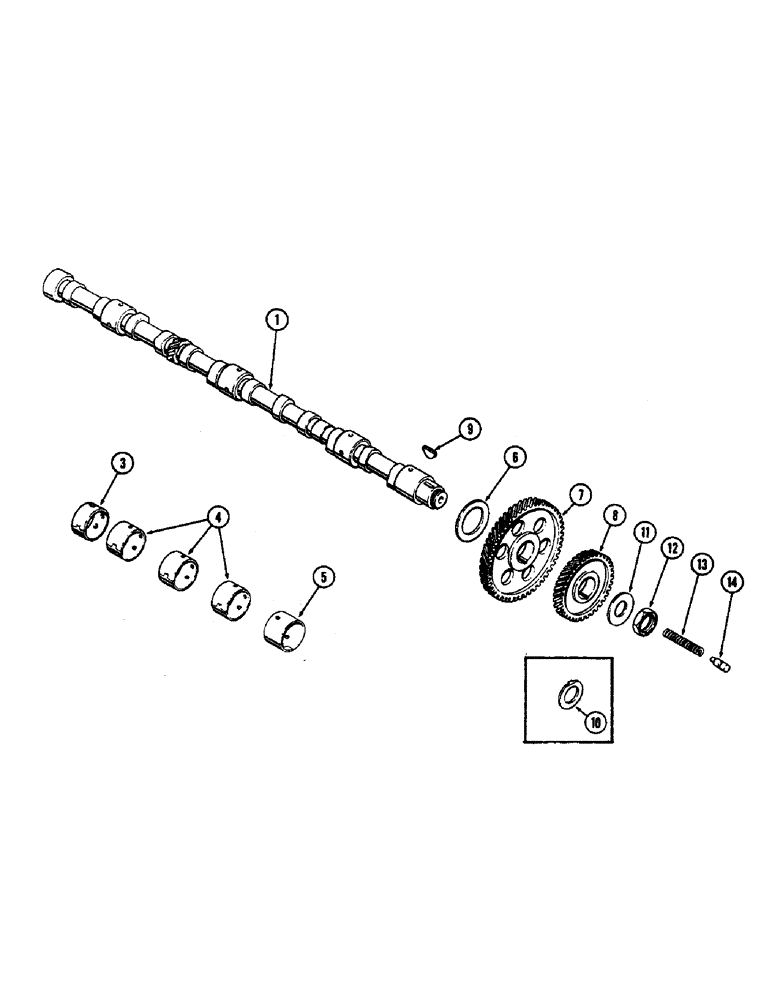

Запчасти Case IH 2470 (038) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear, 1-5/32" (29.37 MM) Wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, intermediate, 1-7/16" (36.51 MM) Wide

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, front, 1-21/32" (42.07 MM) Wide

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" Hi-Pro

1шт.

10

A58594

LOCK WASHER

- lock, camshaft nut (Order A31038)

1шт.

11

A31038

THRUST WASHER

- camshaft nut, 1-25/64 x 2-1/4 x 5/32" (35.32 x 57.15 x 3.97 MM)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

A27853

SPRING

- plunger, camshaft thrust, 3-5/8" (92.08 MM) Free length

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
