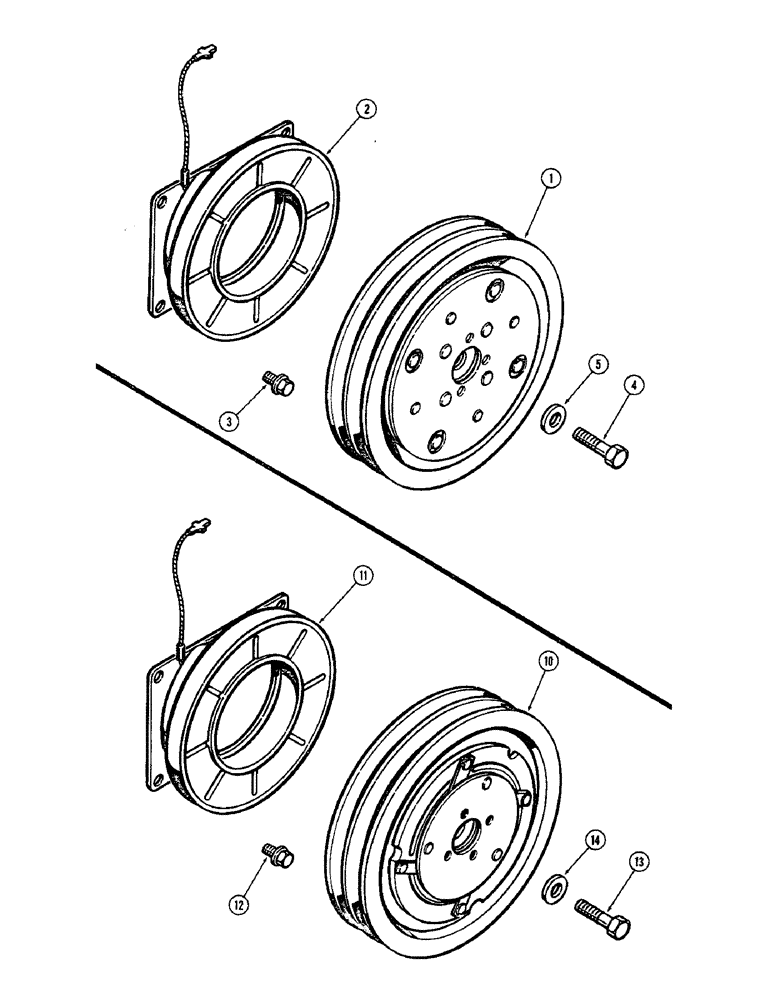

Запчасти Case IH 2470 (556) - CAB, AIR CONDITIONING, YORK COMPRESSOR CLUTCH ASSEMBLY (09) - CHASSIS/ATTACHMENTS

A64956

CLUTCH

ASSEMBLY - (Warner Electric #I-1405-17) (Order A162008), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY - rotor

1шт.

2

A42941

COIL

FIELD ASSEMBLY - pulley

1шт.

3

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

4

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NC hex., grade 5

1шт.

5

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A162008

CLUTCH

ASSEMBLY - Warner Electric no. I-1411-45B (Not shown), Includes: Ref. 10 - 14

1шт.

A66057

CLUTCH

ASSEMBLY - (Warner Electric no. (-1436-14) (Order A162008), Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY - rotor

1шт.

11

A44568

ELECTRIC CLUTCH

FIELD ASSEMBLY - pulley

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

13

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NF hex., grade 5

1шт.

14

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.
