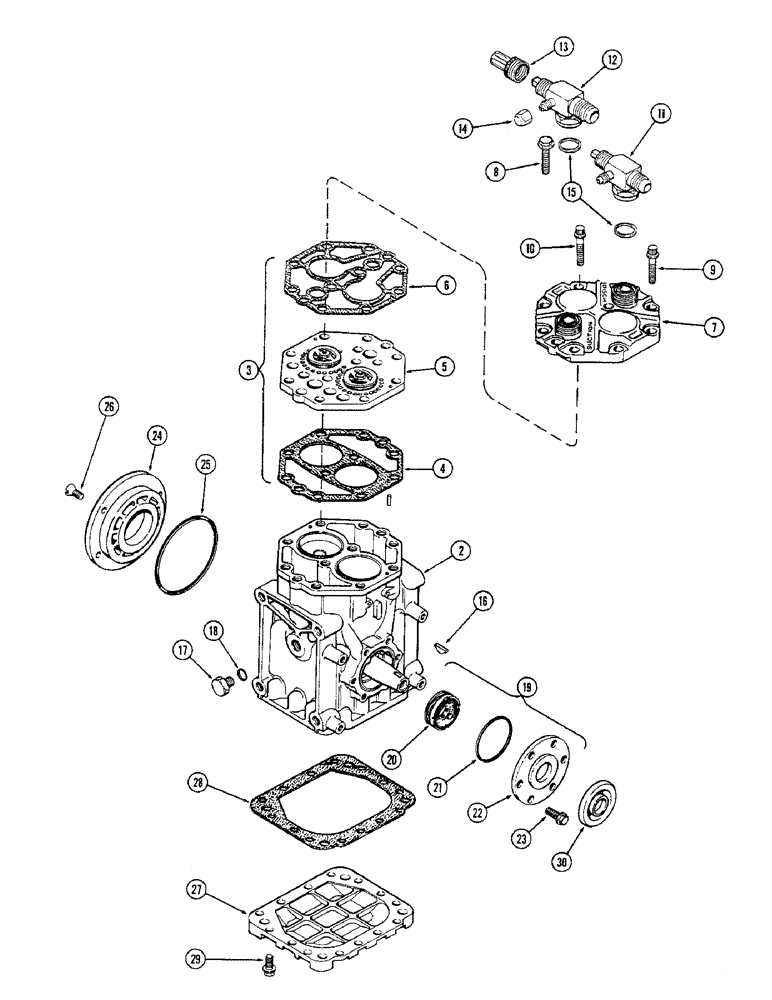

Запчасти Case IH 2470 (554) - CAB, AIR CONDITIONING, YORK COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

A141060

COMPRESSOR

ASSEMBLY - (York ER210L), Includes: Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSEMBLY

1шт.

3

A45420

VALVE

KIT - valve plate (Replaces A42963), Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve plate to crankcase (Order A42964)

1шт.

Part of Complete Overhaul Gasket Kit P/N A42964

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cylinder head to valve plate (Order A42964)

1шт.

Part of Complete Overhaul Gasket Kit P/N A42964

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT - 5/16 x 1-3/8" NC hex., washer head

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

- 5/16 x 1-3/8" NC Ferry head, 12 point cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - 5/16 x 1-17/32" NC Ferry head, 12 point cap

2шт.

11

A42936

VALVE

ASSEMBLY - rotor-lock, discharge, 1/2" port, Includes: Ref. 13 and 14

1шт.

12

A42937

VALVE

ASSEMBLY - rotor-lock, suction, 5/8" port, Includes: Ref. 13 and 14

1шт.

13

A42944

CAP

- sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

- roto-lock to cylinder head (See A42964)

2шт.

16

A42939

KEY

- crankshaft, no. 6 non-rok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

PLUG - crankcase, filler and level

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - filler and level plug (Order A42964)

2шт.

Part of Complete Overhaul Gasket Kit P/N A42964

1шт.

19

A48248

SEAL

KIT - seal, crankshaft front (Replaces A42960), Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - (Order A42964)

1шт.

Part of Complete Overhaul Gasket Kit P/N A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - 1/4 x 11/16" NC hex., washer head

6шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - rear housing (Order A42964)

1шт.

Part of Complete Overhaul Gasket Kit P/N A42964

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: housing-crankcase

4шт.

27

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - base plate (Order A42964)

1шт.

Part of Complete Overhaul Gasket Kit P/N A42964

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

30

A42965

CAP

DUST CAP - drive shaft seal

1шт.

A42964

GASKET

KIT, complete overhaul, Includes: Ref. 4, 6, 18, 21, 25, 28

1шт.
