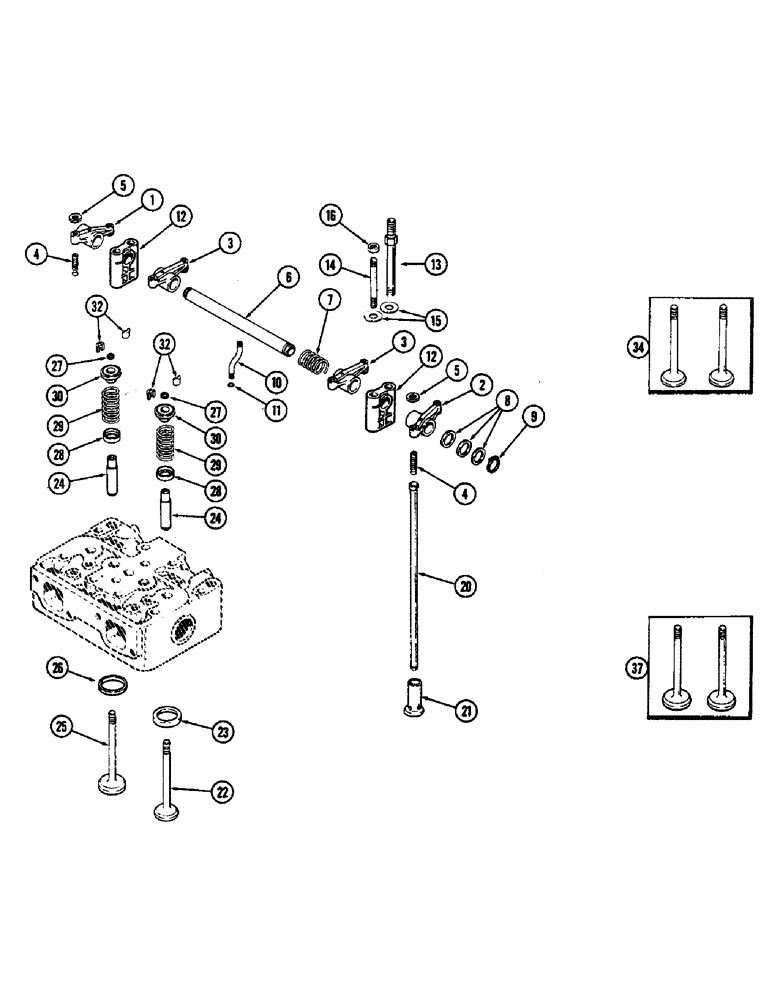

Запчасти Case IH 2470 (036) - VALVE MECHANISM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve, first, third and fifth cylinder (Includes ref. 4 and 5) (Replaces A58655)

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve, second, fourth and sixth cylinder (Includes ref. 4 and 5) (Replaces A58565)

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valves (Replaces A58654), Includes: Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting

12шт.

5

129-123

NUT,3/8"-24, G5

(Replaces 25-116) 3/8"-24, G5

12шт.

6

A150545

SHAFT

- rocker arm (Replaces A57532)

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- 29/32 x 1-5/16 x 1/32" (23.02 x 32.98 x 0.79 MM)

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arm shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube, 3/16" ID x 5/16" x 1/16" (4.76 x 7.94 x 1.59 MM)

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A67121

STUD

- rocker arm bracket (Replaces A60885)

6шт.

14

A58659

STUD

- 7/16" NC x 4-5/16"

6шт.

15

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 5/64" (11.91 x 23.42 x 1.98 mm) (Replaces 195-29)

12шт.

16

129-104

NUT,7/16"-14, G5

(Replaces 25-107) 7/16"-14, G5

6шт.

20

A157328

ROD

- push (Replaces A66439 and A141841)

12шт.

21

A20865

TAPPET

LIFTER - push rod, standard

12шт.

21

A21857

TAPPET

LIFTER - push rod, 0.010" oversize (0.253 MM)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 34)

6шт.

23

A66192

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

- intake and exhaust valves

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 37)

6шт.

26

A66191

INSERT

- intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- intake and exhaust valve springs

12шт.

29

A66444

SPRING

- intake and exhaust valves, 2-3/16" free length (55.56 MM)

12шт.

30

A66336

ROTATOR

- intake and exhaust valve

12шт.

32

A27872

LOCK

- valv spring retainer

24шт.

34

A46289

VALVE

KIT - exhaust (Set of 2) (Replaces A41753)

3шт.

37

A44575

VALVE

KIT - intake (Set of 2)

3шт.
