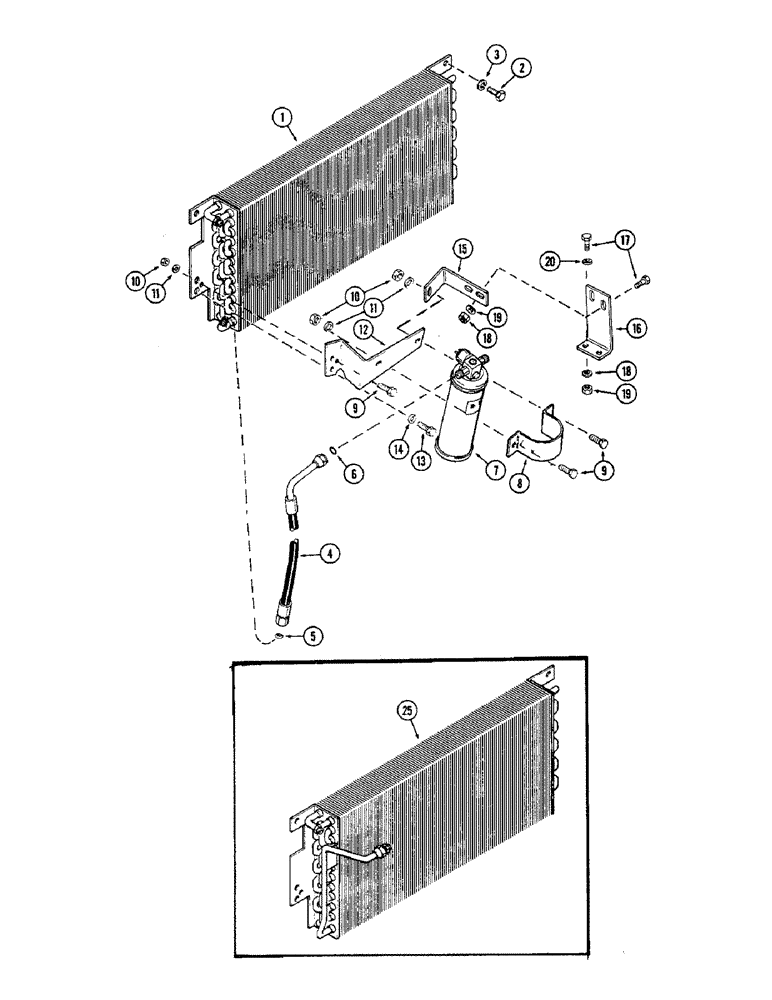

Запчасти Case IH 2470 (548) - CAB, AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A141441

CONDENSER

- air conditioning, Start Serial: 8768821

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

A141409

HOSE

- condenser to receiver-drier, Start Serial: 8768821

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

Hose to condenser 3/8 Tube, Fl, Copper, Start Serial: 8768821

1шт.

6

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16" (7.9375 x 11.1125 x 1.5875 MM) Hose to receiver-drier

1шт.

7

A76312

RECEIVER-DRYER

RECEIVER-DRIER

1шт.

8

A76313

CLAMP

- receiver-drier

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

10

9635082

NUT,5/16" - 18, Gr 5

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

12

A76311

BRACKET - receiver-drier clamp

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

A141309

BRACKET - support, receiver-drier, Start Serial: 8768821

1шт.

16

A141310

BRACKET - support, receiver-drier, Start Serial: 8768821

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

4шт.

20

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)

4шт.

25

A76375

CONDENSER

- air conditioning (Order ref. 1 and 4), Start Serial: 8768821

1шт.
