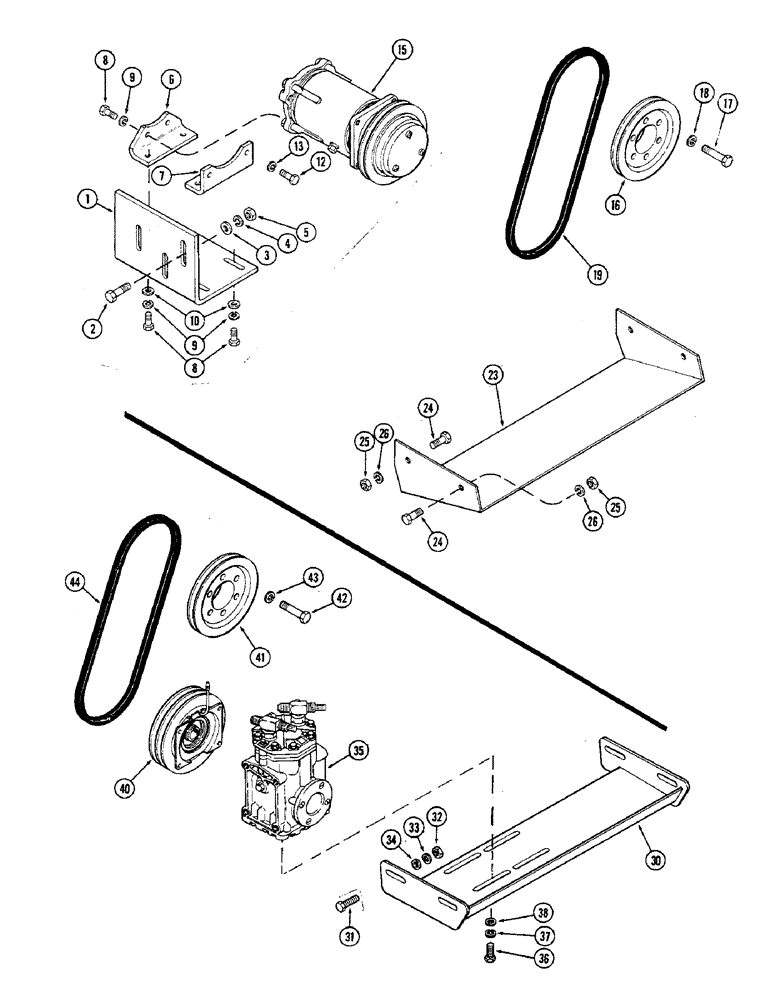

Запчасти Case IH 2470 (546) - CAB, AIR CONDITIONING, GENERAL MOTORS COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A135407

BRACKET

- compressor mounting

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.92 x 3.17 MM)

3шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

A135411

BRACKET - compressor mounting, rear

1шт.

7

A135412

BRACKET - compressor mounting, front

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

10

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE

4шт.

12

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning (See figure 558)

1шт.

16

A76458

PULLEY

- compressor drive

1шт.

17

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

6шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

19

A135265

V-BELT,0.50" W

Compressor Drive 0.50" W

1шт.

23

A135409

SHIELD - compressor

1шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

30

A76751

BRACKET - compressor mounting, york

1шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

York compressor mounting Hex, 1/2"-13 x 1 3/4", G5

4шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

York compressor mounting 1/2"-13, G5

4шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , York compressor mounting 1/2"

4шт.

34

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.92 x 3.17 MM), york compressor mounting

4шт.

35

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning (See figure 554), york

1шт.

36

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

York compressor mounting Hex, 3/8"-16 x 1 1/2", G5

4шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , York compressor mounting 3/8"

4шт.

38

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16" (11.11 x 25.4 x 1.59 MM), york compressor mounting

4шт.

40

REF

INSTRUCTION

CLUTCH ASSEMBLY - (See figure 556), york compressor mounting

1шт.

41

A76458

PULLEY

- compressor drive, york mounting

1шт.

42

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, York compressor mounting

6шт.

43

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , York compressor mounting 1/2"

6шт.

44

A76758

BELT,0.50" W

Compressor Drive, York Mounting 0.50" W

1шт.
