(544) - CAB, HEADLINER NOISE PADS WITH RADIO, CAB SERIAL NO. 7864002 AND AFTER

Запчасти Case IH 2470 (544) - CAB, HEADLINER NOISE PADS WITH RADIO, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

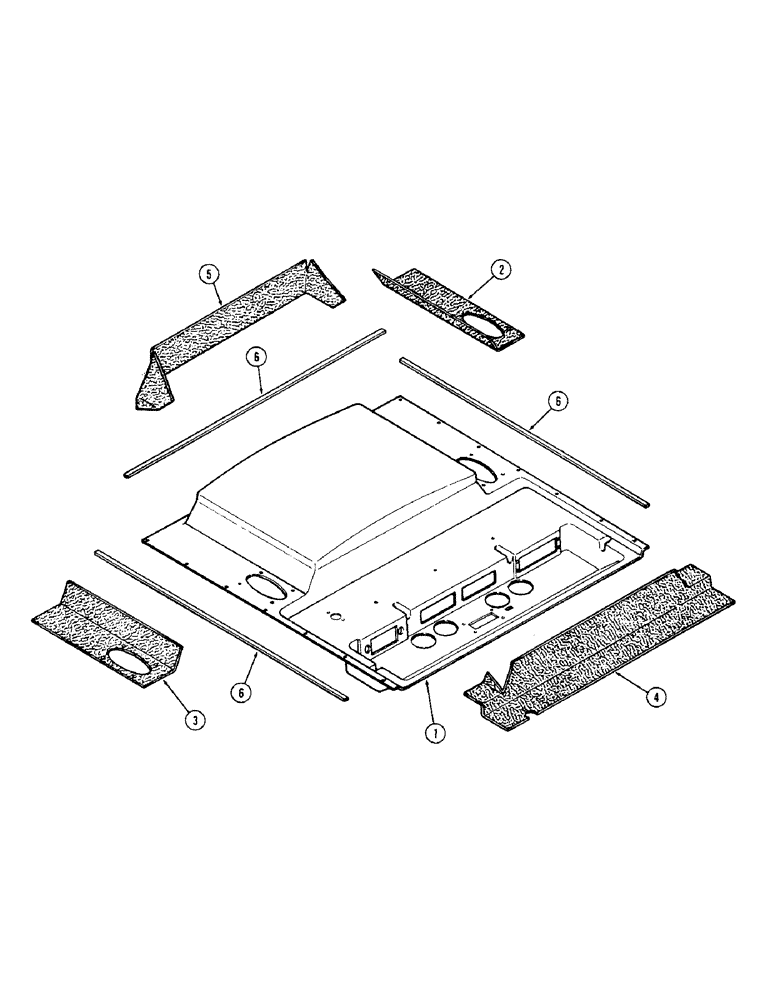

Схема запчастей Case IH 2470 - (544) - CAB, HEADLINER NOISE PADS WITH RADIO, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS
2
6
6
5
4
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEADLINER - cab (See figure 500)

1шт.

2

F64245

PAD

- damping, LH

1шт.

3

F64246

PAD

- damping, RH

1шт.

4

F64247

PAD

- damping, front

1шт.

F64248

PAD

- damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1117.6 MM) (Order F64119)

3шт.

F64119

SEALING STRIP

- seal, 100' roll (2540 MM)

1шт.
