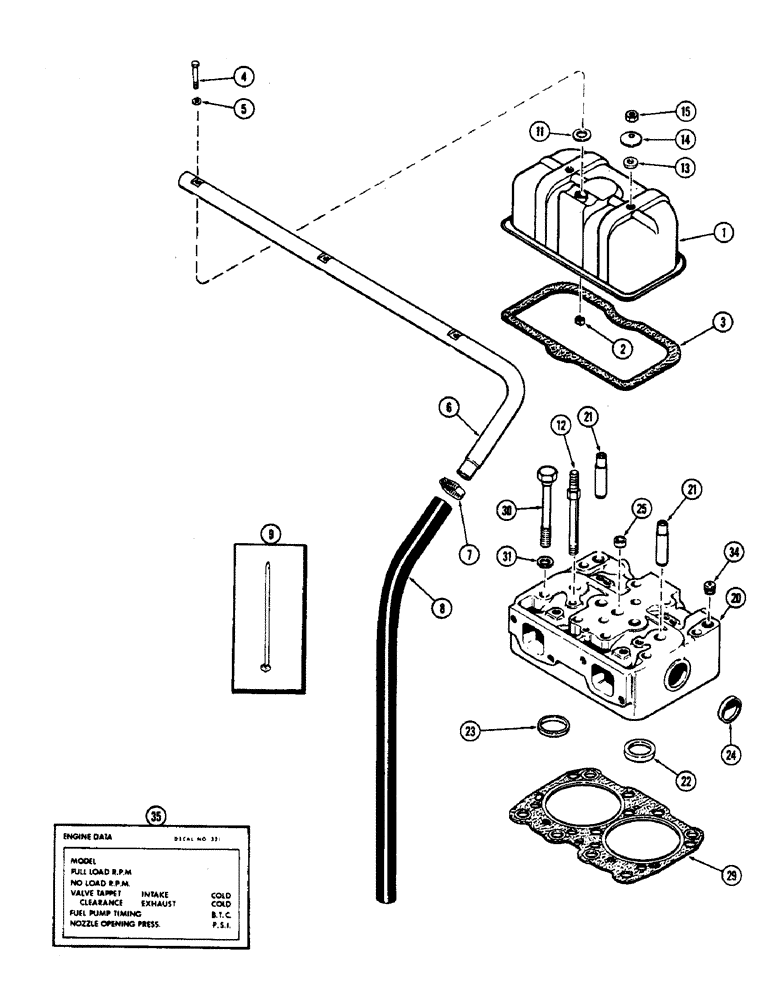

Запчасти Case IH 2470 (034) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

NUT - 1/4" NC Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

3шт.

4

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 2 1/2", G5

3шт.

5

A34133

GASKET

GASKET - tube, upper

3шт.

6

A66640

TUBE

TUBE - breather blow-by (Rear)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 MM)

1шт.

8

A156416

HOSE,25.4 mm ID x 1016.00 mm, SAE J200F

Breather (Replaces A66132)

1шт.

9

A160890

STRAP

STRAP - breather hose (Replaces L11541)

1шт.

11

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

3шт.

12

A67121

STUD

STUD - rocker arm bracket and cover (Replaces A60885)

6шт.

13

A23684

GASKET

GASKET - cover stud (Rubber)

6шт.

14

A23683

WASHER

WASHER - cover stud (Dished)

6шт.

15

129-104

NUT,7/16"-14, G5

NUT, (Replaces 25-107) 7/16"-14, G5

6шт.

20

A66190

HEAD ASSY.

HEAD ASSEMBLY - cylinder, casting no. A60559, Includes: Ref. 21 - 25

3шт.

20

AR66194

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

20

AC66194

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDES - intake and exhaust valves

4шт.

22

A66192

INSERT

INSERT - exhaust valve seat

2шт.

23

A66191

INSERT

INSERT - intake valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.3 MM) Cup type

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 MM) Cup type

3шт.

29

REF

INSTRUCTION

GASKET - cylinder head with fire ring (See figure 53 and 55)

3шт.

30

A76638

BOLT

BOLT - 5/8 x 6-1/4" NC hex., grade 8 (Replaces A136498)

30шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt

30шт.

34

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" PT hex. socket head

6шт.

35

321-2137

DECAL

DECAL - engine data

1шт.
