(532) - CAB, REAR LIGHTS

Запчасти Case IH 2470 (532) - CAB, REAR LIGHTS (09) - CHASSIS/ATTACHMENTS

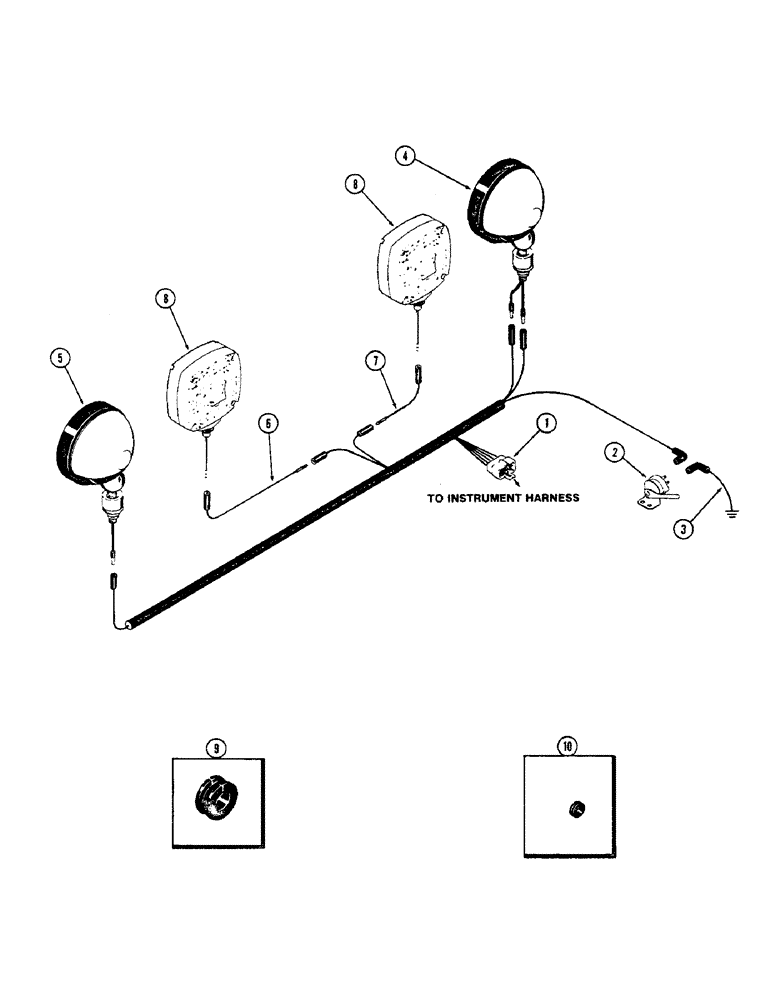

Схема запчастей Case IH 2470 - (532) - CAB, REAR LIGHTS (09) - CHASSIS/ATTACHMENTS
8
10
8
1
4
9
6
3
2
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F63852

HARNESS

- rear lights

1шт.

2

A33977

SWITCH

- parking brake light

1шт.

3

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

4

A59703

LAMP

- rear flood and tail (LH side) (See figure 136)

1шт.

5

A63822

HEADLIGHT

LAMP - rear flood (RH side) (See figure 136)

1шт.

6

F63584

CABLE

- warning light (RH)

1шт.

7

F63585

CABLE

- warning light (LH)

1шт.

8

REF

INSTRUCTION

LAMP - flasher (Order A44201) (See figure 130)

2шт.

9

353-700

BUSHING

GROMMET - frame (Replaces A31076)

2шт.

10

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab, front and rear light harness

4шт.
