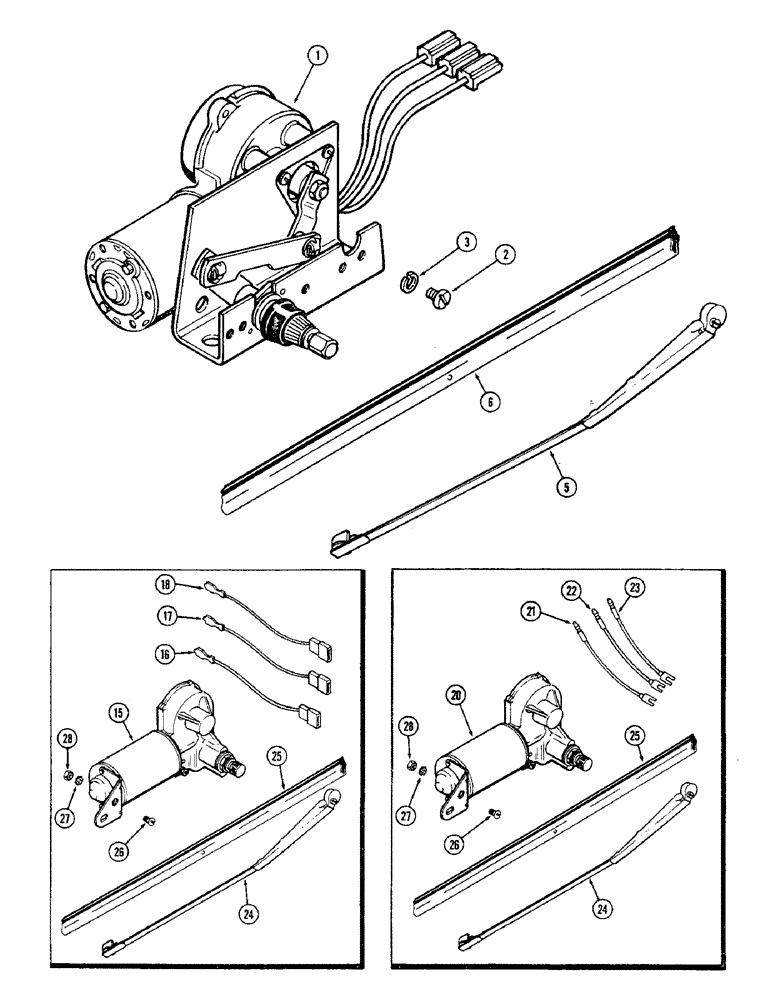

Запчасти Case IH 2470 (530) - CAB, WINDSHIELD WIPER, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F98108

WIPER

MOTOR ASSEMBLY - wiper (Order F64524, F64530 and F96764)

1шт.

2

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- 1/4 x 3/8" NF pan head slotted

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

A165060

WIPER ARM

ARM - wiper blade, 18" (457.2 MM) (Replaces F43789)

1шт.

6

A165059

WIPER

BLADE - wiper, 20" (508 MM) (Replaces L35261)

1шт.

F98158

MOTOR, ELECTRIC

MOTOR ASSEMBLY - windshield wiper (Replaces A42692), prior to cab s/n 7864002, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper, prior to cab s/n 7864002

1шт.

16

F64188

ELECTRICAL WIRE

WIRE - motor, green, prior to cab s/n 7864002

1шт.

17

F64189

ELECTRICAL WIRE

WIRE - motor, blue, prior to cab s/n 7864002

1шт.

18

F64190

ELECTRICAL WIRE

WIRE - motor, orange, prior to cab s/n 7864002

1шт.

A42692

MOTOR

ASSEMBLY - windshield wiper (Order F98158), prior to cab s/n 7864002, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper, prior to cab s/n 7864002

1шт.

21

A42693

ELECTRICAL WIRE

WIRE - motor, green, prior to cab s/n 7864002

1шт.

22

A42694

ELECTRICAL WIRE

WIRE - motor, blue, prior to cab s/n 7864002

1шт.

23

A42695

ELECTRICAL WIRE

WIRE - motor, orange, prior to cab s/n 7864002

1шт.

24

T41946

ARM

- windshield wiper, prior to cab s/n 7864002

1шт.

25

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper, prior to cab s/n 7864002

1шт.

26

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 x 1/2" hex. washer head, prior to cab s/n 7864002

1шт.

27

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Prior to cab S/N 7864002 Ext-Int Tooth, #10

2шт.

28

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex., prior to cab s/n 7864002

1шт.
