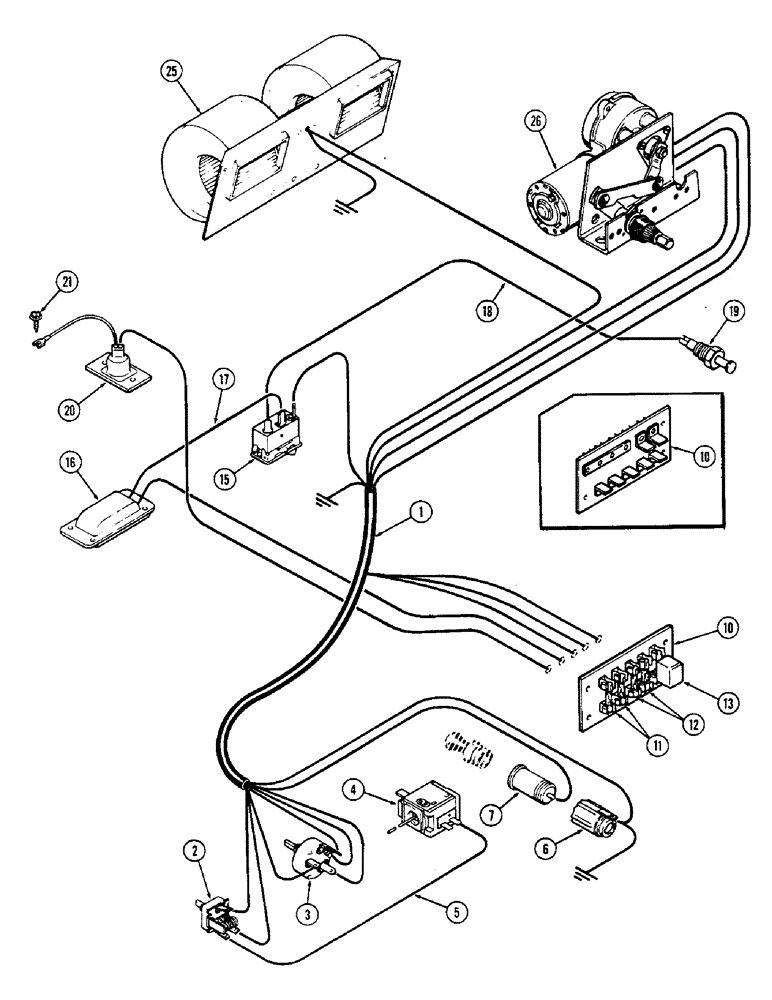

Запчасти Case IH 2470 (528) - CAB, MAIN WIRING HARNESS, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F98110

HARNESS

ASSEMBLY - main wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower motor (See figure 522)

1шт.

3

REF

INSTRUCTION

SWITCH - wiper motor (See figure 522)

1шт.

4

REF

INSTRUCTION

SWITCH - cab temperatures (See figure 522)

1шт.

5

A42624

ELECTRICAL WIRE

WIRE - temperature switch to blower switch, 6" black (152.4 MM)

1шт.

6

REF

INSTRUCTION

SHELL - lighter socket (See figure 522)

1шт.

7

REF

INSTRUCTION

SOCKET - lighter (See figure 522)

1шт.

10

REF

INSTRUCTION

BLOCK - fuse (See figure 500)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- lighter and console lamp, 1 ampere

2шт.

12

223-15

FUSE,15 Amp, Type 3AG

- wiper and blower, 15 ampere

2шт.

13

F64181

BREAKER

- circuit

1шт.

15

REF

INSTRUCTION

SWITCH - dome lamp (See figure 500)

1шт.

16

REF

INSTRUCTION

LAMP - dome (See figure 500)

1шт.

17

F64126

ELECTRICAL WIRE

WIRE - switch to dome lamp, 4" black (101.6 MM)

1шт.

18

F64127

ELECTRICAL WIRE

WIRE - door switch, 70" white (1778 MM)

1шт.

19

F63895

SWITCH

- door, dome lamp

1шт.

20

REF

INSTRUCTION

LAMP - console (See figure 500)

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" Phillips, self-tapping

1шт.

25

REF

INSTRUCTION

BLOWER ASSEMBLY - (See figure 536)

1шт.

26

REF

INSTRUCTION

MOTOR - wiper (See figure 530)

1шт.
