(526) - CAB, LOWER WIRING HARNESS, CAB SERIAL NO. 7864002 AND AFTER

Запчасти Case IH 2470 (526) - CAB, LOWER WIRING HARNESS, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

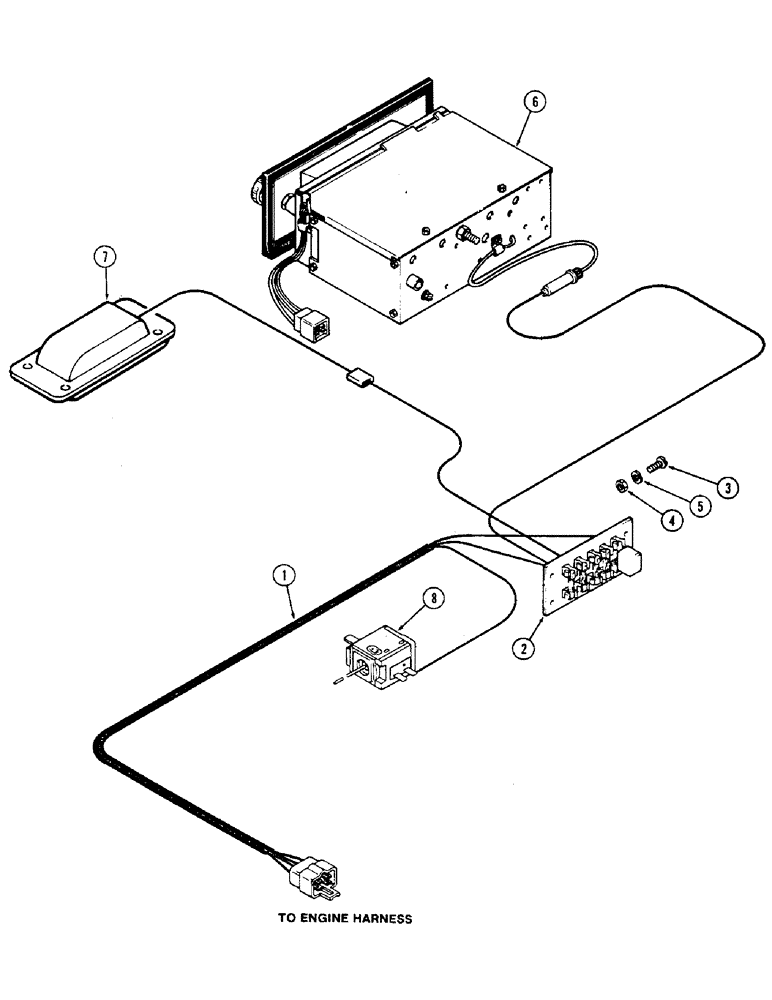

Схема запчастей Case IH 2470 - (526) - CAB, LOWER WIRING HARNESS, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS
7
8
5
1
6
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F98112

HARNESS

ASSEMBLY - cab to engine harness

1шт.

2

F98113

BLOCK

- fuse

1шт.

3

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 x 1/2" round head brass

1шт.

4

129-630

NUT,#5-40, Brass

- #5-40 hex., brass

1шт.

5

195-14

WASHER,#12

- lock, #5

1шт.

6

REF

INSTRUCTION

RADIO - (See figure 542)

1шт.

7

REF

INSTRUCTION

LAMP ASSEMBLY - dome (See figure 500)

1шт.

8

REF

INSTRUCTION

SWITCH - temperature control (See figure 522)

1шт.
