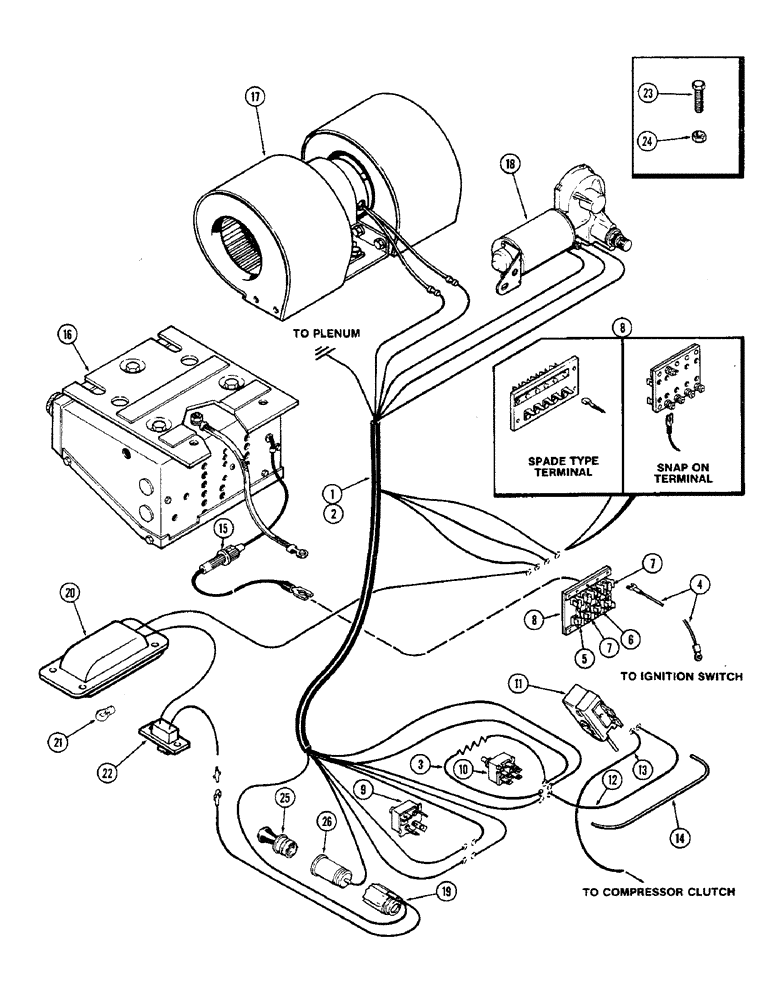

Запчасти Case IH 2470 (524) - CAB, CONTROLS AND WIRING, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

ASSEMBLY - with snap on fuse terminals (Prior to cab serial no. 7844980), Includes: Ref. 3

1шт.

2

F64111

HARNESS

ASSEMBLY - with spade type fuse terminals (Cab serial no. 7844980 and after), Includes: Ref. 3

1шт.

3

A42652

ELECTRICAL WIRE

WIRE - resistor (18" orange and purple stripe (457.2 MM))

1шт.

4

F63816

ELECTRICAL WIRE

WIRE - input, brass bar, 154-1/2" red (3924.3 MM)

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 ampere (Dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amperes (Wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amperes (Blower and cigar lighter)

2шт.

8

REF

INSTRUCTION

BLOCK - fuse (See figure 498)

1шт.

9

REF

INSTRUCTION

SWITCH - wiper motor (See figure 520)

1шт.

10

REF

INSTRUCTION

SWITCH - blower motor (See figure 520)

1шт.

11

REF

INSTRUCTION

CONTROL - cab temperature (See figure 520)

1шт.

12

A42624

ELECTRICAL WIRE

WIRE - blower switch to temperature control, 6" black (152.4 MM)

1шт.

13

F63661

ELECTRICAL WIRE

WIRE - temperature control to compressor clutch, 230" (5842 MM)

1шт.

14

F63719

TUBE

- shield, temperature control, 8-1/2" (215.9 MM)

1шт.

15

223-26

FUSE,5 Amp, Type 3AG

- 5 ampere, 1-1/4" length (31.75 MM)

1шт.

16

REF

INSTRUCTION

RADIO KIT - (See figure 538)

1шт.

17

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - (See figure 534)

1шт.

18

REF

INSTRUCTION

MOTOR - windshield wiper (See figure 530)

1шт.

19

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter (See figure 520)

1шт.

20

REF

INSTRUCTION

LAMP ASSEMBLY - dome (See figure 498), Includes: Ref. 21

1шт.

21

B50217

BULB

- dome lamp

1шт.

22

F63760

SWITCH

- dome lamp

1шт.

23

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine (#10 x 3/8" hex.) Control panel wire harness to wiper motor switch

1шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.

25

REF

INSTRUCTION

ELEMENT - cigar lighter (See figure 520)

1шт.

26

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter (See figure 520)

1шт.
