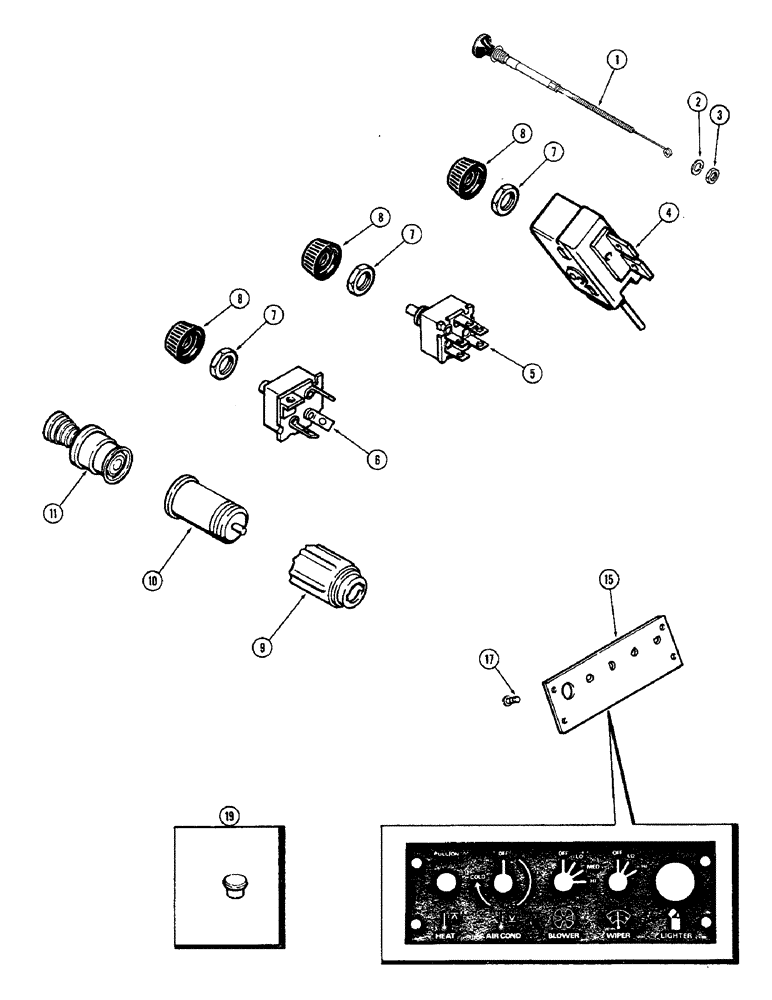

Запчасти Case IH 2470 (520) - CAB, CONTROLS AND PANEL, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

A42614

CABLE

ASSEMBLY - heater control, Includes: Ref. 2 and 3

1шт.

2

92-6

LOCK WASHER,3/8"

1шт.

3

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

4

A42623

CONTROL

- cab temperature

1шт.

5

A42622

SWITCH

- blower

1шт.

6

F42660

SWITCH - wiper motor (Replaces F63532)

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- jam., 7/16" NF hex.

3шт.

8

A42578

KNOB

- switch

3шт.

9

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

10

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

11

A143340

SWITCH

ELEMENT - plug-in, cigar lighter (Replaces F63531)

1шт.

15

F63868

DECAL

PANEL - control

1шт.

17

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" Phillips head

4шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.
