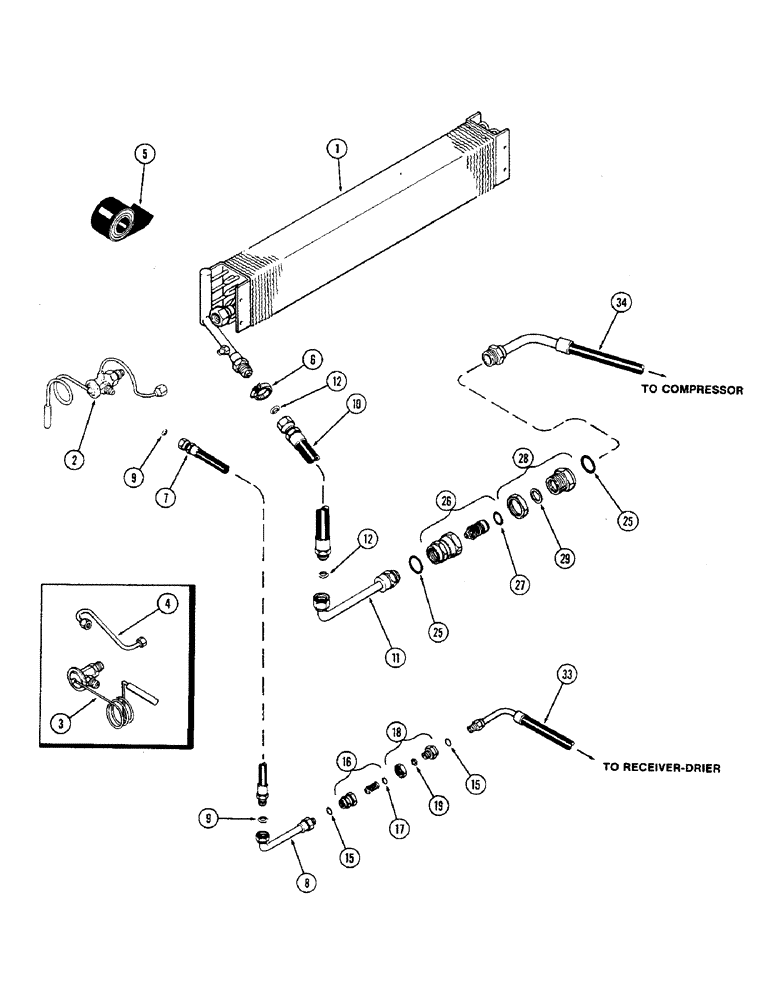

Запчасти Case IH 2470 (518) - CAB, AIR CONDITIONING HOSES AND TUBES, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator

1шт.

2

F64389

VALVE

- expansion

1шт.

3

F63726

VALVE

- expansion (Order F64389)

1шт.

4

F63871

TUBE - equalizer (Order F64389)

1шт.

5

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/8" (63.5 x 304.8 x 3.175 MM)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 1-3/16 to 1-3/4" (14.29 to 26.99 MM)

2шт.

7

F63753

HOSE

- high side, 1/2" ID x 77-1/2" (12.7 x 1968.5 MM)

1шт.

8

F63668

TUBE,0.38" OD x 9.25" L

- hose to coupling, high side

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

10

F63941

A/C HOSE,15.88 mm ID x 1854.20 mm

Low Side 15.88 mm ID x 1854.20 mm

1шт.

11

F63874

TUBE,0.75" OD x 6.30, 2.5" L

- hose to coupling

1шт.

12

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" tube 45 degree flare

2шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

- coupling to tube, 23/64 x 1/2 x 1/16" (9.13 x 12.7 x 1.59 MM)

2шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - high side to drier hose, Includes: Ref. 17

1шт.

17

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling piston

1шт.

18

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - receiver-drier hose to cab, Includes: Ref. 19

1шт.

19

A42667

GASKET

- coupling

1шт.

25

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling, 1-3/64 x 1-13/16 x 1/16" (26.5906 x 46.0375 x 1.5875 MM)

2шт.

26

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - low side to compressor hose, Includes: Ref. 27

1шт.

27

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

- coupling piston

1шт.

28

A61194

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - compressor hose to cab, Includes: Ref. 29

1шт.

29

A42668

GASKET

- coupling

1шт.

33

A76315

HOSE

- to receiver, Serial Range: --receiver-drier

1шт.

34

A141201

HOSE

, Serial Range: --compressor

1шт.
