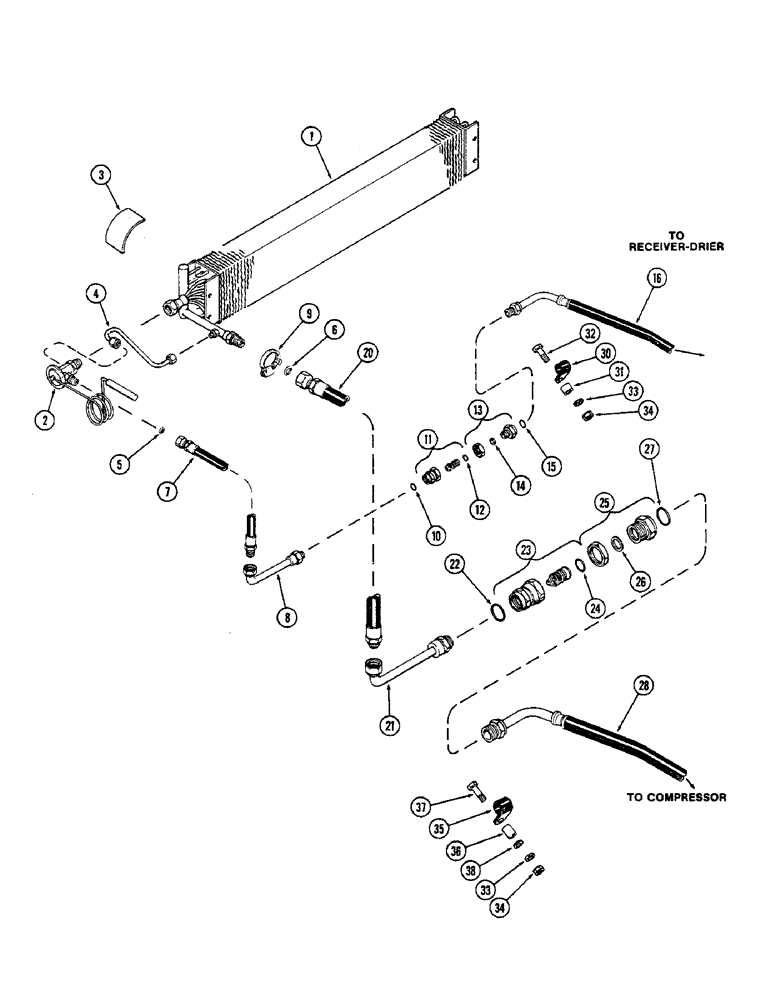

Запчасти Case IH 2470 (516) - CAB, AIR CONDITIONING HOSES AND TUBES, PRIOR TO CAB SERIAL NO. 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63646

EVAPORATOR

- air conditioning evaporation

1шт.

2

F63726

VALVE

- expansion

1шт.

3

NSS

NOT SOLD SEPARAT

INSULATION - valve (Order A42902)

1шт.

A42902

SEALING STRIP

INSULATION - 2-1/2" wide 30' roll (63.5 x 9144 MM)

1шт.

4

F63727

TUBE

- equalizer

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

6

222-995

SEALING WASHER,15.88mm ID

- 45 degree, #10 copper

1шт.

7

F63753

HOSE

- high side, 75-1/2" (1917.7 MM)

1шт.

8

F63668

TUBE,0.38" OD x 9.25" L

- high side hose to coupling

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - equalizer tube and valve, 9/16 to 1-1/16" (14.29 to 26.99 MM)

2шт.

10

A61195

O-RING,0.364" ID x 0.5" OD

- coupling, 23/64 x 1/2 x 1/16" (9.1281 x 12.7 x 1.5875 MM)

1шт.

11

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - cab, Includes: Ref. 12

1шт.

12

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling piston

1шт.

13

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - receiver-drier hoses at cab connector, Includes: Ref. 14

1шт.

14

A42667

GASKET

- coupling

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

- coupling, 23/64 x 1/2 x 1/16" (9.1281 x 12.7 x 1.5875 MM)

1шт.

16

A76315

HOSE

- to receiver-drier (See pages 548 and 552)

1шт.

20

F63754

HOSE

- low side, 78-5/16" (1989.14 MM)

1шт.

21

F63526

TUBE

-, Serial Range: hose-coupling

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling, 1-3/64 x 1-13/16 x 1/16" (26.59 x 46.04 x 1.59 MM)

1шт.

23

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - cab, Includes: Ref. 24

1шт.

24

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

- coupling piston

1шт.

25

A61194

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - tractor half, Includes: Ref. 26

1шт.

26

A42668

GASKET

- coupling

1шт.

27

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling to hose, 1-3/64 x 1-13/16 x 1/16" (26.59 x 46.04 x 1.59 MM)

1шт.

28

REF

INSTRUCTION

HOSE - coupling to compressor (See figures 548 and 552)

1шт.

30

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube, 3/8" ID

1шт.

31

T34922

BUSHING

SPACER - clamp, 13/32 x 9/16 x 31/32" (10.32 x 14.29 x 24.61 MM)

1шт.

32

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

2шт.

35

49855

CLAMP

- tube, 5/8" ID

1шт.

36

T39053

SPACER - clamp, 15/32 x 3/4 x 27/64" (11.91 x 19.05 x 10.72 MM)

1шт.

37

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

38

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.
