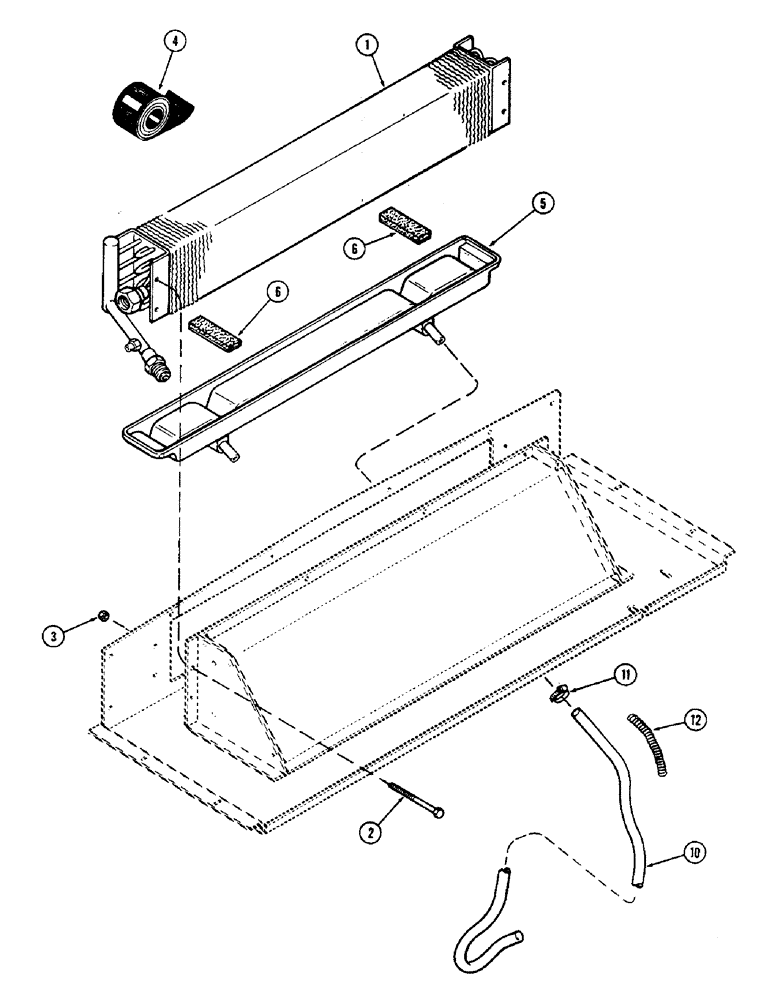

Запчасти Case IH 2470 (514) - CAB, PLENUM WITH AIR CONDITIONING, CAB SERIAL NO. 7864002 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator, air conditioning

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- 1/4 x 4" NC hex., grade 5

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex. lock

4шт.

4

345-37

TAPE

- cork insulator, core end, 2-1/2 x 12 x 1/8" (63.5 x 304.8 x 3.175 MM)

3шт.

5

F63684

PAN

- condensation (Order F64529)

1шт.

6

F63670

SEAL

- pan to core, 1 x 3-1/2 x 1/4" (25.4 x 88.9 x 6.35 MM)

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain 75" long (1905 MM)

1шт.

A42698

HOSE

- 1/2" ID clear plastic 50' roll cut to length (12.7 x 15240 MM)

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.1625 x 44.45 MM)

2шт.

12

F63327

SPRING

- stiffener, drain hose

2шт.
