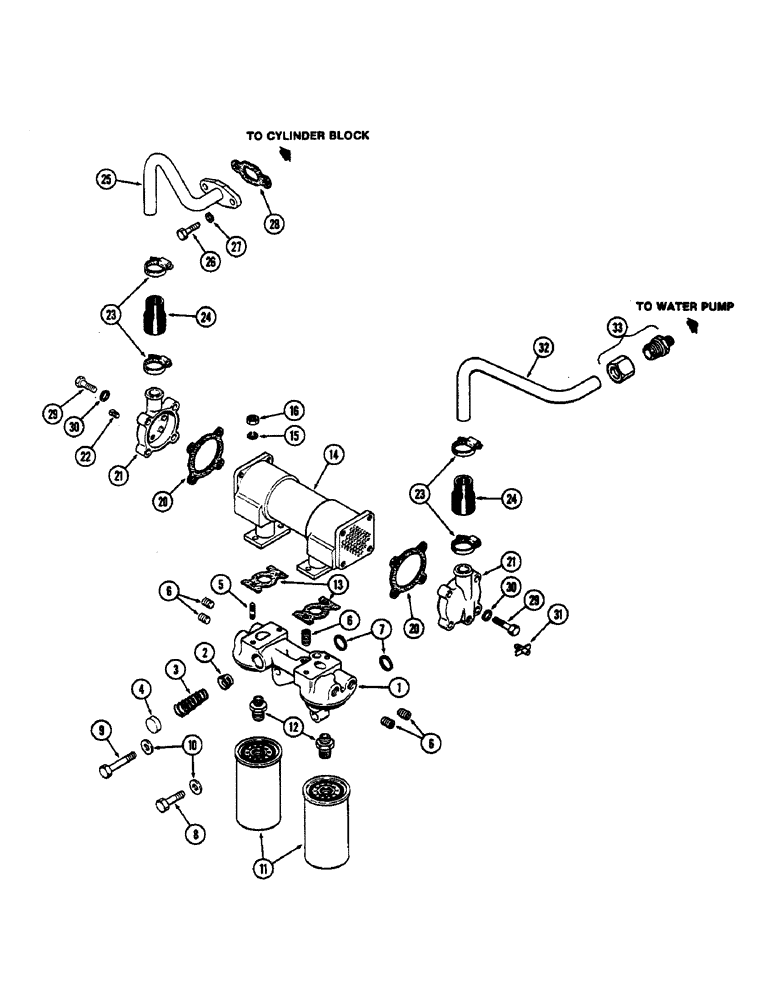

Запчасти Case IH 2470 (032) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A64107

BASE

ASSEMBLY - oil filter and heat exchanger (Order A154541), Includes: Ref. 2 - 6

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- relief valve, 2-13/16" (71.44 MM) Free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" (31.75 MM) Cup type

1шт.

5

G102128

BOLT

- 3/8" NC x 1-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex. socket head

5шт.

7

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, 59/64 x 1-1/8 x 7/64" (23.42 x 28.58 x 2.78 MM)

2шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" NC hex., grade 5

1шт.

10

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

2шт.

11

A44081

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

12

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

13

A65359

GASKET

- heat exchanger to filter base

2шт.

14

A75295

OIL COOLER

HEAT EXCHANGER - oil

1шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

4шт.

20

A63920

GASKET

- bonnet

2шт.

21

A64349

HOOD

BONNET - heat exchanger ends

2шт.

22

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8" PT square head

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 MM)

4шт.

24

A64353

HOSE

- bonnets to water tubes

2шт.

25

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

A58670

GASKET

- tube

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex., grade 5

8шт.

30

92-6

LOCK WASHER,3/8"

8шт.

31

217-107

VALVE

DRAIN COCK - heat exchanger

1шт.

32

A75298

TUBE

- heat exchanger water outlet to water pump

1шт.

33

222-2020

FITTING

CONNECTOR ASSEMBLY - male

1шт.
